Marathon

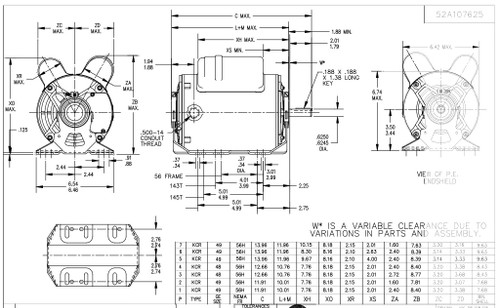

C1909 Marathon 1 1/2 hp 1800 RPM 115/208-230V TENV 56 Frame Cap Start/Run Farm Motor
- 1 1/2 hp 1800 RPM, 14.0/7.2-7.0 amps, 115/208-230 Volts 60 Hz. Capacitor Start / Capacitor Run Phase
- NEMA 56 Frame, TENV, Shaft 5/8" Diameter x 1 7/8"
- Service Factor = 1.3, Overload Protection: Auto
- Resilient Base, Reversible Rotation, Ball Bearings, Class B Insulation
- 1 Year Manufacture Warranty
Single phase motor designed for belt drive fans in farm buildings, TENV = Totally-Enclosed Non-Ventilated, 5KCR49ZN0785S
| Compliance Tab | /content/product_tabs/p65warnings.html |
|---|---|
| ON SALE | DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM |
| Voltage | 115/208/230V |
| Horsepower | 1/2 HP |
| RPM | 1800 |
| Phase | Single Phase |
| Frame | 56 |
| Enclosure | TENV |
| Hertz | 60 Hz |
| Amperage | 7.0 Amps |
| Bearings | Ball Bearings |
| Insulation Class | Class B |
| Rotation | Reversible |
