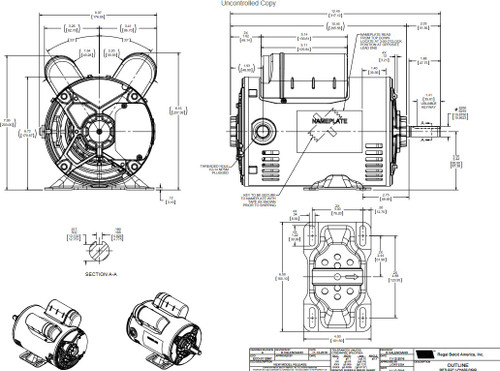

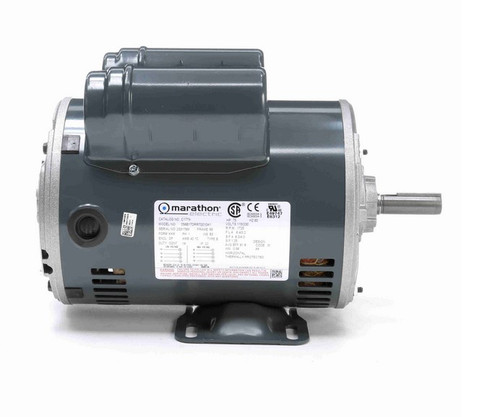

C177A Marathon 3/4 hp 115/208-230V 1800 RPM ODP 56 Frame Cap Start/Run Motor
(No reviews)
Write a Review
Write a Review
Marathon
C177A Marathon 3/4 hp 115/208-230V 1800 RPM ODP 56 Frame Cap Start/Run Motor
$760.73
$639.95
SKU
C177A
Shipping
Free Shipping
Compliance Tab
/content/product_tabs/p65warnings.html
ON SALE
DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage
115/208/230V
Horsepower
3/4 HP
RPM
1800
Frame
56
Enclosure
ODP
Hertz
60 Hz
Amperage
3.3 Amps
Bearings
Ball Bearings
Speeds
1-Speed
Insulation Class
Class B
Rotation
Reversible
Mounting
Rigid Base
C177A Marathon 3/4 hp 115/208-230V 1800 RPM ODP 56 Frame Cap Start/Run Motor
This Marathon 3/4 horsepower motor operates at 1800 RPM with capacitor start and run functionality, designed for general-purpose indoor applications requiring high efficiency and high starting torque. It replaces Leeson M56B17DRR70014A3A and is suitable for installations needing a horizontal shaft orientation.
Key Specifications
- Horsepower: 3/4 hp
- RPM: 1800
- Voltage: 115/208-230 V, 60 Hz
- Amperage: 6.6/3.5-3.3 A
- Enclosure: Open Drip Proof (ODP)
- Frame / Diameter: NEMA 56 Frame
- Shaft Dimensions: 1 7/8" length x 5/8" diameter
- Rotation: Reversible
- Bearings: Ball Bearings
Product Features & Fitment
This motor features a rigid base for stable mounting and manual thermal protection. It is designed for horizontal shaft installation and includes Class B insulation. The capacitor start/run design ensures reliable starting torque for demanding applications.
Cross Reference
- Leeson M56B17DRR70014A3A, E119855.00, 100005.00
Warranty
1 Year Manufacturer Warranty
1 Year Manufacturer Warranty
| Compliance Tab | /content/product_tabs/p65warnings.html |
|---|---|
| ON SALE | DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM |
| Voltage | 115/208/230V |
| Horsepower | 3/4 HP |
| RPM | 1800 |
| Frame | 56 |
| Enclosure | ODP |
| Hertz | 60 Hz |
| Amperage | 3.3 Amps |
| Bearings | Ball Bearings |
| Speeds | 1-Speed |
| Insulation Class | Class B |
| Rotation | Reversible |
| Mounting | Rigid Base |
- Leeson M56B17DRR70014A3A, E119855.00, 100005.00
