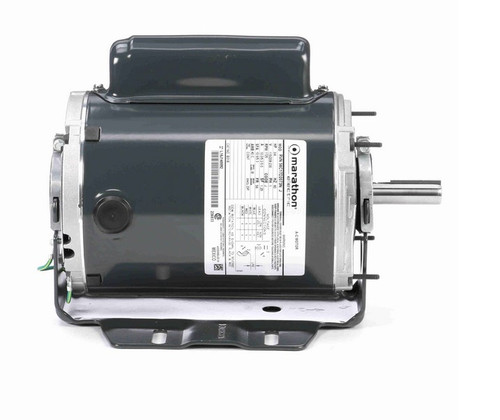

B318 Marathon 3/4 hp (1 speed) 115/208-230V 1800 RPM ODP 56 Frame Cap Start Resilient Base Motor

B318 Marathon 3/4 hp (1 speed) 115/208-230V 1800 RPM ODP 56 Frame Cap Start Resilient Base Motor

This Marathon 3/4 horsepower motor is designed for blower applications in HVAC systems, providing reliable air movement inside buildings. It is a direct replacement for similar 56 frame capacitor start motors with resilient base mounting.

Key Specifications

• Horsepower: 3/4 hp
• RPM: 1800
• Voltage: 115/208-230V, 60 Hz
• Amperage: 10.0 / 5.2-5.0 amps
• Enclosure: Open Drip Proof (ODP)
• Frame / Diameter: NEMA 56 Frame
• Shaft Dimensions: 1 7/8" length x 5/8" diameter, keyed shaft
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a capacitor start design for higher starting torque, suitable for blower applications where shaft orientation may be vertical or horizontal. It includes a resilient base for stable mounting and is designed with Class B insulation. The motor does not include thermal protection and operates at a single speed.

Warranty

1 Year Manufacturer Warranty
