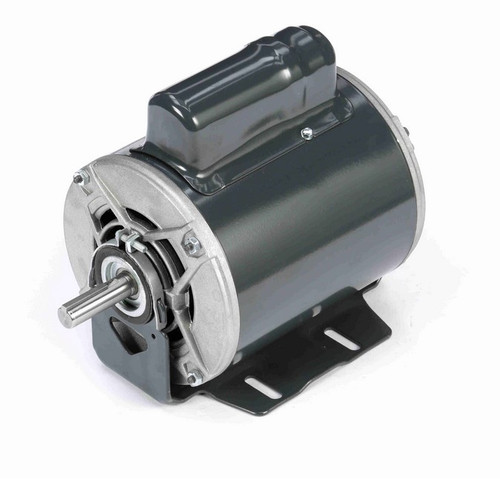

C138 Marathon 3/4 hp (1 speed) 115/208-230V 1800 RPM ODP 56 Frame Cap Start Resilient Base Motor

C138 Marathon 3/4 hp (1 speed) 115/208-230V 1800 RPM ODP 56 Frame Cap Start Resilient Base Motor

This Marathon 3/4 horsepower motor is designed for blower applications in HVAC systems, providing reliable air movement within buildings. It serves as a direct replacement for similar capacitor start motors requiring a resilient base mount and open drip proof enclosure.

Key Specifications

• Horsepower: 3/4 hp
• RPM: 1800
• Voltage: 115/208-230V, 60 Hz
• Amperage: 11.4/5.7-5.6 amps
• Enclosure: Open Drip Proof (ODP)

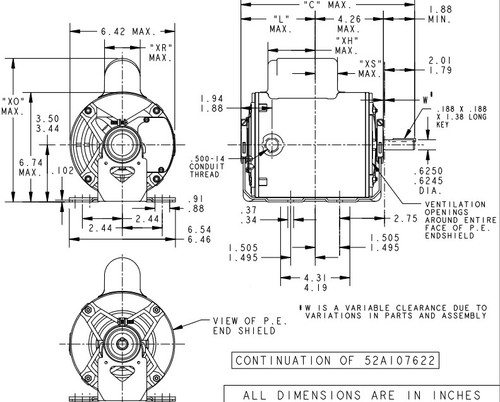

• Frame / Diameter: NEMA 56 Frame
• Shaft Dimensions: 1 7/8" length x 5/8" diameter, keyed
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a capacitor start design for higher starting torque, suitable for applications requiring quick and efficient startup. The resilient base mount allows for secure installation with reduced vibration. Thermal protection is automatic, and the motor includes Class B insulation for durability. The shaft orientation can be installed vertically or horizontally to accommodate various blower configurations.

Warranty

1 Year Manufacturer Warranty
