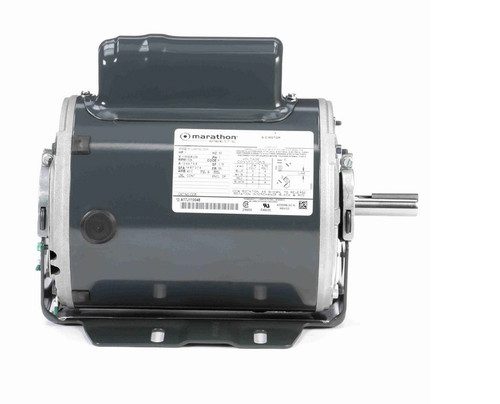

C235 Marathon 1 hp (1 speed) 115/208-230V 1800 RPM ODP 56 Frame Cap Start Resilient Base Motor

SKU:: C235
UPC:
Weight:: 31.00 LBS
Width:: 8.00 (in)
Height:: 8.00 (in)
Depth:: 14.00 (in)
Shipping:: Free Shipping
ON SALE:: DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage:: 115/208/230V
Horsepower:: 1 HP
RPM:: 1800
Frame:: 56
Enclosure:: ODP
Hertz:: 60 Hz
Amperage:: 6.7 Amps
Bearings:: Ball Bearings
Speeds:: 1-Speed
Insulation Class:: Class B

Current Stock:

Was: $489.10

Now: $423.20

Quantity:

Adding to cart… The item has been added

Description
Literature
Compliance & Restrictions

C235 Marathon 1 hp 115/208-230V 1800 RPM ODP 56 Frame Capacitor Start Resilient Base Motor

This Marathon 1 horsepower motor is designed for blower applications, providing reliable air movement inside buildings. It replaces Century model C524V1 and features an open drip proof (ODP) enclosure suitable for various HVAC systems.

Key Specifications

Horsepower: 1 hp
RPM: 1800
Voltage: 115/208-230 V, 60 Hz
Amperage: 13.6 / 6.8 - 6.7 A
Enclosure: Open Drip Proof (ODP)

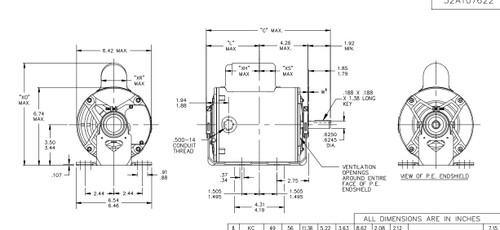

Frame / Diameter: NEMA 56 Frame
Shaft Dimensions: 1 7/8" length x 5/8" diameter, keyed shaft
Rotation: Reversible
Bearings: Ball Bearings

Product Features & Fitment

This single-speed motor features a capacitor start and a resilient base for stable mounting. It includes thermal protection with automatic reset and is designed for versatile installation with either vertical or horizontal shaft orientation. The motor’s service factor of 1.15 ensures durability under varying load conditions.
