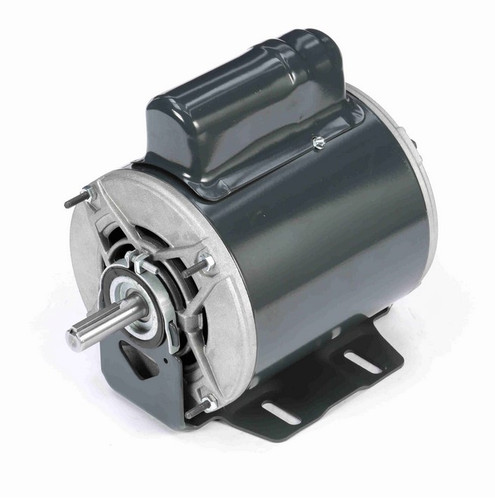

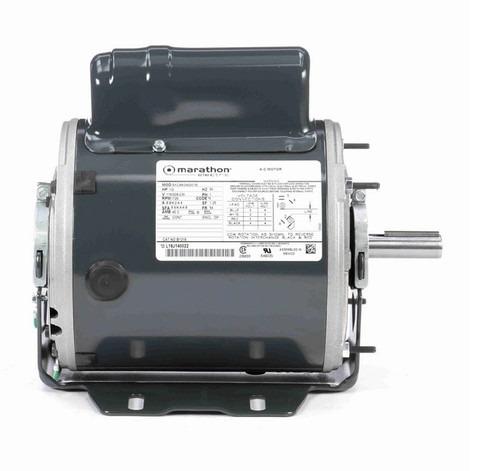

B1316 Marathon 1/2 hp (1 speed) 115/208-230V 1800 RPM ODP 56 Frame Cap Start Resilient Base Motor

B1316 Marathon 1/2 hp (1 speed) 115/208-230V 1800 RPM ODP 56 Frame Cap Start Resilient Base Motor

This Marathon 1/2 horsepower motor is designed for blower applications, providing reliable air movement in residential or commercial HVAC systems. It serves as a direct replacement for similar 56 frame motors requiring a capacitor start and resilient base mounting.

Key Specifications

• Horsepower: 1/2 hp
• RPM: 1800
• Voltage: 115/208-230 V, 60 Hz
• Amperage: 8.8/4.2-4.4 A
• Enclosure: Open Drip Proof (ODP)
• Frame / Diameter: NEMA 56 Frame

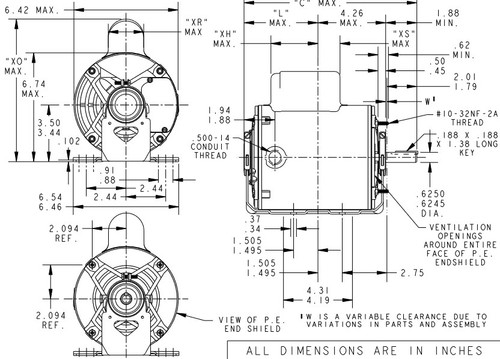

• Shaft Dimensions: 1 7/8" length x 5/8" diameter, keyed
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a capacitor start for efficient operation and a resilient base for stable mounting. It includes a keyed shaft compatible with standard blower assemblies and can be installed with the shaft oriented vertically or horizontally. The motor is designed without thermal protection and has Class B insulation for durability in typical HVAC environments.

Warranty

1 Year Manufacturer Warranty
