Fasco K161 Motor | Fasco C-Frame Ice Maker Motor .90 amps 3000 RPM 120V (CCW rotation)

Fasco K161 Motor | Fasco C-Frame Ice Maker Motor .90 amps 3000 RPM 120V (CCW rotation)

The Fasco K161 is a C-frame ice maker motor designed for continuous duty applications such as bath fans, hood fans, and humidifiers/dehumidifiers. It replaces models including AEROVOX S11000017 and MATHIESEN, offering reliable performance with counterclockwise (CCW) shaft rotation.

Key Specifications

• Amperage: 0.90 amps
• RPM: 3000
• Voltage: 120V
• Frame / Diameter: C-Frame, Iron Stack Size 1.0"
• Shaft Dimensions: 0.217" diameter x 1.21" length
• Rotation: Counterclockwise (CCW)
• Enclosure: Skeleton
• Insulation Class: B

Product Features & Fitment

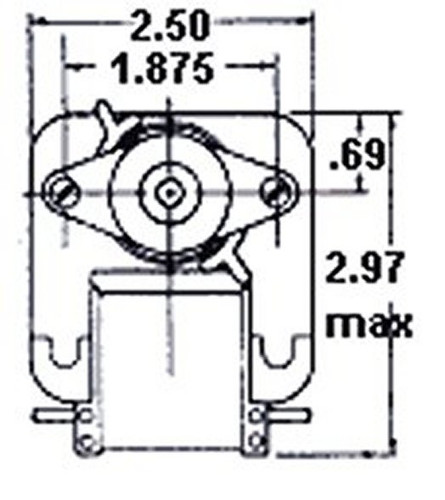

This motor features a mounting configuration with two studs spaced 1 7/8" on center, compatible with standard C-frame skeleton motor mounts. It includes two 6-inch wire leads for easy electrical connection. Rotation direction is determined when facing the shaft, ensuring proper fitment in fan and ice maker applications.

Cross Reference

• AEROVOX S11000017, MATHIESEN

Warranty

• Fasco Catalog Page
