Fasco K130 Motor | Fasco C-Frame Vent Fan Motor .47 amps 3000 RPM 115V (CW rotation)

Fasco K130 Motor | Fasco C-Frame Vent Fan Motor .47 amps 3000 RPM 115V (CW rotation)

The Fasco K130 is a C-frame vent fan motor designed as a direct replacement for various fan applications including bath fans, hood fans, and humidifiers/dehumidifiers. It features clockwise (CW) shaft rotation and is suitable for continuous duty operation.

Key Specifications

• Amperage: 0.47 amps
• RPM: 3000
• Voltage: 115 V

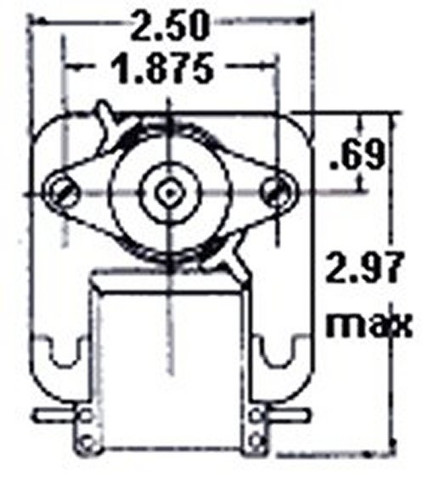

• Frame / Diameter: C-Frame, 5/8" iron stack size
• Shaft Dimensions: 0.181" diameter x 1.0" length
• Rotation: Clockwise (CW)

Product Features & Fitment

This motor mounts using two studs spaced 1 7/8" on center, matching the standard mounting pattern for similar skeleton motors. It includes two 6-inch wire leads for electrical connections. Shaft rotation is determined when facing the shaft, ensuring proper installation orientation. The motor is built with Class B insulation for continuous duty applications.
