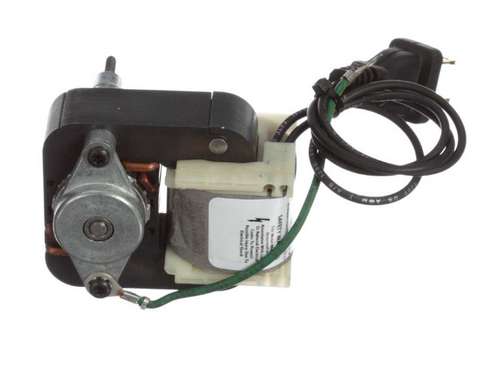

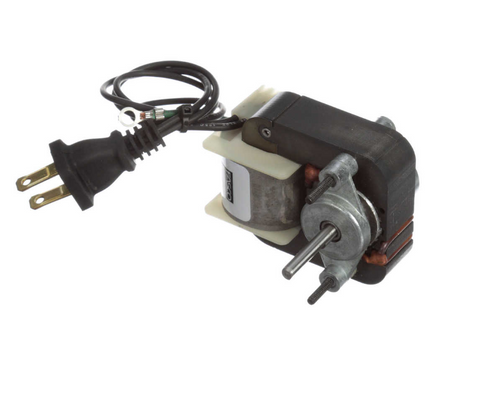

The Fasco K113 is a C-frame vent fan motor designed for various fan applications including bath fans, hood fans, and humidifiers/dehumidifiers. It is a direct replacement for models such as NUTONE 63675, 9605-N, 9665-N, and WESTWARD VFM 103, providing reliable performance with counterclockwise (CCW) shaft rotation.

Key Specifications

• Amperage: 0.90 amps
• RPM: 3000
• Voltage: 120 Volts
• Frame / Diameter: C-Frame, Iron Stack Size 0.75"
• Shaft Dimensions: 0.217" diameter with flat x 1.19" length
• Rotation: Counterclockwise (CCW)
• Enclosure: Continuous Duty - Class B Insulation

Product Features & Fitment

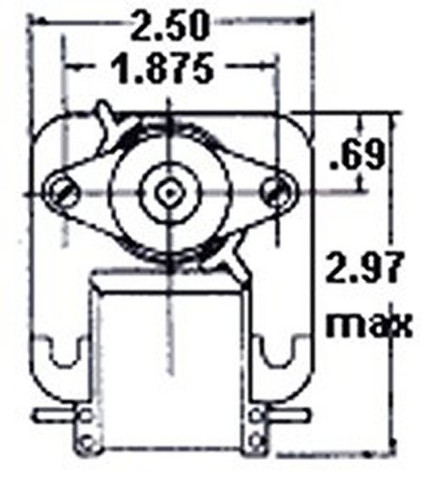

This motor features a mounting system with two studs spaced 1 7/8" on center, ensuring compatibility with existing fan assemblies. It includes two 6-inch wire leads for electrical connections. The rotation direction is determined when facing the shaft, confirming proper installation orientation. The consistent mounting pattern across these motors allows for straightforward replacement in a variety of fan units.

Cross Reference

• NUTONE 63675, 9605-N, 9665-N WESTWARD VFM 103
