Fasco D0975 Motor | 1/20 hp 1045 RPM 115 Volts (Penn Vent 7151-2139)

Fasco D0975 Motor | 1/20 hp 1045 RPM 115 Volts (Penn Vent 7151-2139)

The Fasco D0975 is a replacement motor designed for attic exhaust fans and rooftop vents. It serves as a direct substitute for various Penn Vent and other OEM motors, ensuring reliable performance in ventilation applications.

Key Specifications

• Horsepower: 1/20 hp
• RPM: 1045
• Voltage: 115 Volts, 60 Hz
• Amperage: 1.13 amps

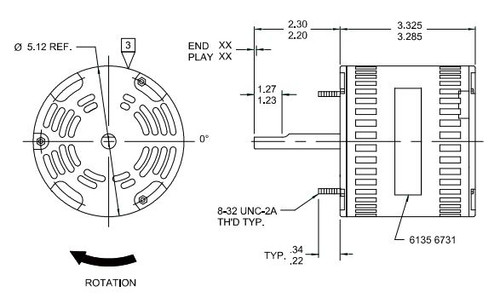

• Frame / Diameter: 5" diameter
• Shaft Dimensions: 3/8" diameter x 2.25" length
• Rotation: Clockwise shaft end

Product Features & Fitment

This motor features a band/stud mount with a 4.62" bolt circle for secure installation. It includes a 15-inch power cord with a 2-prong plug for easy connection. The motor length excluding the shaft is 3.3 inches. Installation requires a 5 MFD-370 VAC capacitor, which is not included.

Suggested replacement references include Penn Vent models S88-916, 59121, 7151-2139, as well as Century/AO Smith DA3B039 series, Dayton 4VA19, and Fasco D1036/D1037 variants. Please verify motor body length compatibility before installation.

Cross Reference

• S88-916, 59121, 7151-2139, Z-8, Z-6, Z8, Z6. Roof Top Vent
• Century/AO Smith DA3B039, DA3B039N, 975
• Dayton 4VA19, 161L80

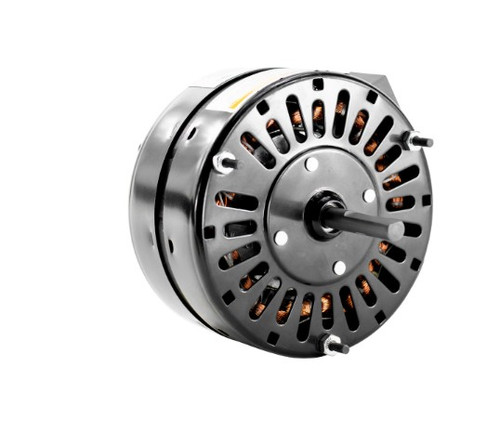

• Fasco D1036, D1037, 7187-0426, 71513496, 7151-3496 (Please double check body length will fit space)

Warranty

1 Year Manufacturer Warranty
