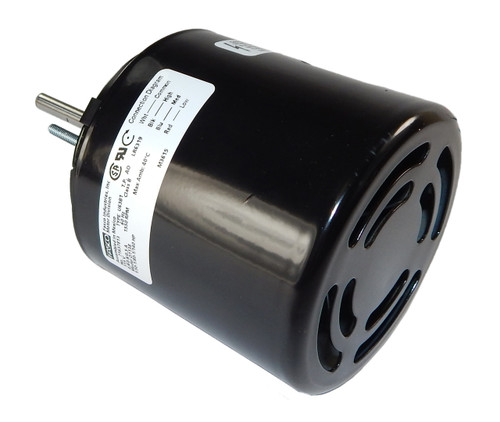

Fasco D1138 Motor | Buck Stove Replacement Motor, 1/50 hp 1550 RPM 3-Speed 115V

Fasco D1138 Motor | Buck Stove Replacement Motor

This Fasco D1138 motor is a direct replacement for Buck wood stove models and select Dayton motors. Designed for reliable operation in heating applications, it features a 3-speed design to provide adjustable airflow performance.

Key Specifications

• Horsepower: 1/50 hp
• RPM: 1550
• Voltage: 115V
• Amperage: 0.9 Amps
• Shaft Dimensions: 5/16" x 2"
• Rotation: Clockwise (CW) Shaft End
• Bearings: Sleeve Bearings

Product Features & Fitment

The motor is fan-cooled with a shrouded design to ensure efficient heat dissipation during operation. It supports three speed settings identified by wire color: High (Black), Medium (Blue), and Low (Red), with a common White wire. Mounting options include belly band or stud mount, and the motor length excluding the shaft measures 2 13/16". Compatible replacement for models R22CCW270ZD, 7163-6045, 7163-7813, U9522, and Dayton 48GN48.

Warranty

1 Year Manufacturer Warranty
