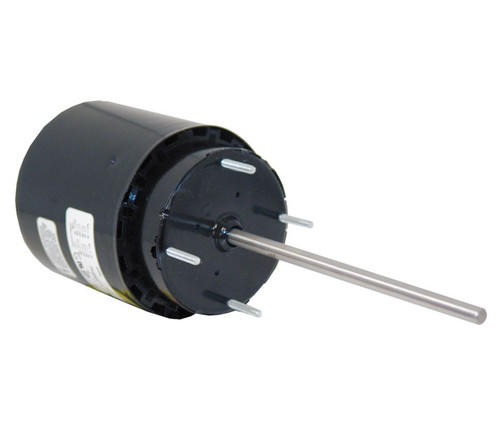

Fasco D220 Motor | 1/20 hp 3000 RPM CW 115/230 Volts

Fasco D220 Motor | 1/20 hp 3000 RPM CW 115/230 Volts

The Fasco D220 is a compact, shaded pole motor designed for applications requiring reliable, low-horsepower performance. It is suitable for replacing motors in HVAC systems and other equipment requiring a 1/20 hp, 3000 RPM motor with clockwise shaft rotation.

Key Specifications

• Horsepower: 1/20 hp
• RPM: 3000
• Voltage: 115/230 Volts, 60 Hz
• Amperage: 1.7/0.8 Amps
• Enclosure: Totally Enclosed, Self Cooled
• Shaft Dimensions: 5/16" diameter x 6 1/2" length
• Rotation: Clockwise (CWSE)
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a stud mount with a 2.85" bolt circle and four mounting studs at the shaft end for secure installation. The motor length excluding the shaft measures 4 5/8", making it compact for tight spaces. Its shaded pole design ensures quiet operation and reliable performance in various HVAC and industrial applications.

Warranty

1 Year Manufacturer Warranty
