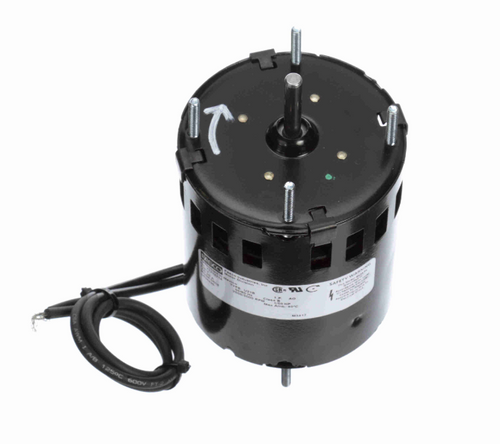

Fasco D608 Motor | 1/50 hp 3000 RPM CW 3.3" Diameter 3000 RPM 230 Volts

Fasco D608 Motor | 1/50 hp 3000 RPM CW 3.3" Diameter 230 Volts

The Fasco D608 is a compact shaded pole motor designed for applications requiring reliable, low-horsepower performance. It is suitable for replacing motors in HVAC systems and other industrial equipment needing a 1/50 hp, 3000 RPM motor with clockwise shaft rotation.

Key Specifications

• Horsepower: 1/50 hp
• RPM: 3000
• Voltage: 230 Volts
• Amperage: 0.6 amps
• Enclosure: Open Ventilation, Self Cooled
• Frame / Diameter: 3.3" Diameter, Motor Length (less shaft) 3 3/4"
• Shaft Dimensions: 1/4" diameter x 1 5/16" length
• Rotation: Clockwise (CWSE)
• Bearings: Sleeve bearings

Product Features & Fitment

This motor features a stud mount with a 2.85" bolt circle and four mounting studs on each end for secure installation. Extra studs can be removed if not required, and the shaft length can be shortened with a hacksaw to fit specific applications. A shaft bushing (1/4" to 5/16", part # KIT240) is available separately for additional fitment options.

Warranty

1 Year Manufacturer Warranty
