Fasco D216 Motor | 1/25 hp 3000 RPM CW 3.3" Diameter 230 Volts

Fasco D216 Motor | 1/25 hp 3000 RPM CW 3.3" Diameter 230 Volts

The Fasco D216 is a compact shaded pole motor designed for HVAC and industrial applications requiring reliable, low-horsepower performance. It is a suitable replacement for motors with similar specifications, offering consistent clockwise rotation and efficient operation.

Key Specifications

• Horsepower: 1/25 hp
• RPM: 3000
• Voltage: 230 Volts
• Amperage: 0.65 amps
• Enclosure: Open Ventilation, Air Over
• Frame / Diameter: 3.3" diameter
• Shaft Dimensions: 1/4" diameter x 2 1/4" length
• Rotation: Clockwise (CWSE)
• Bearings: Sleeve bearings

Product Features & Fitment

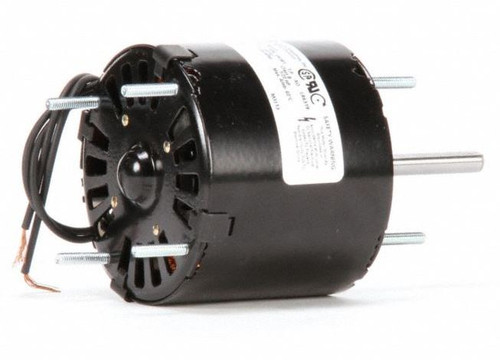

This motor features a stud mount with a 2.85" bolt circle and four mounting studs on each end, allowing for secure installation. Extra studs can be removed if not required. The motor length excluding the shaft is 3 1/4". The shaft can be shortened with a hacksaw if necessary. A shaft bushing adapter (1/4" to 5/16", part # KIT240) is available separately to accommodate different shaft sizes.

Warranty

1 Year Manufacturer Warranty
