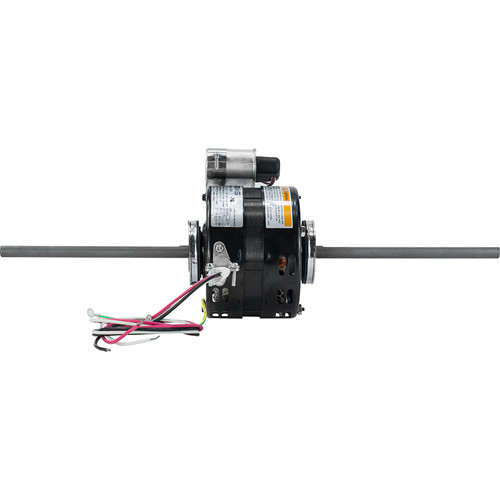

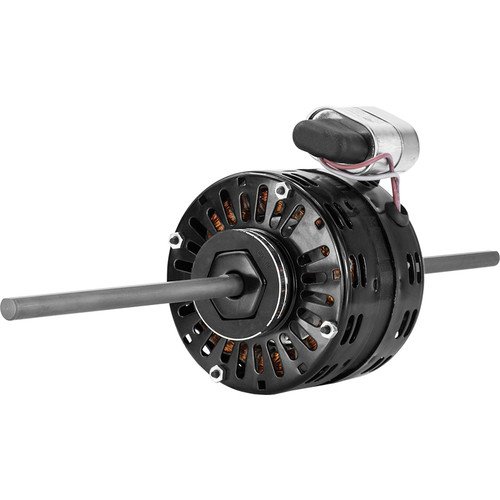

FASCO D258 OEM Aftermarket Replacement 1/5 hp 1550 RPM 208-230V 5 Inch Dia.

FASCO D258 OEM Aftermarket Replacement 1/5 hp 1550 RPM Motor

This FASCO D258 is an OEM aftermarket replacement motor designed for fan coil air-conditioning and heating units. It delivers reliable performance with dual-speed operation and is compatible with various HVAC applications requiring a 1/5 horsepower motor.

Key Specifications

• Horsepower: 1/5 hp
• RPM: 1550
• Voltage: 208-230V, 60 Hz
• Amperage: 1.8-1.95 amps
• Frame / Diameter: 5 inch diameter body
• Shaft Dimensions: 8" length x 1/2" diameter, double shaft
• Bearings: Sleeve bearings
• Enclosure: Open ventilation (Air Over)

Product Features & Fitment

This motor features a resilient mount with a bolt circle of 4.62" and is designed for hub mounting without a base included. It is a PSC style motor that includes a capacitor for efficient operation. The motor supports two speeds—high and low—to accommodate varying airflow requirements.

Warranty

1 Year Manufacturer Warranty
