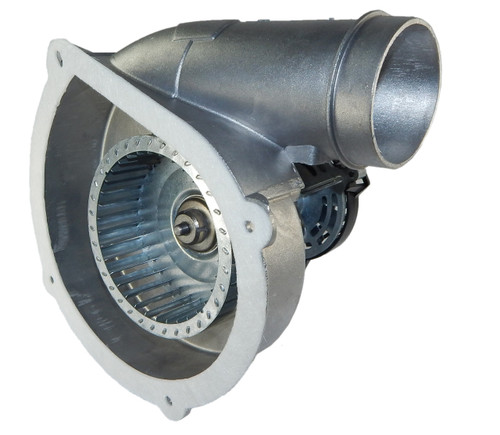

FB-RFB241 | Rheem Ruud Weather King, RGP Mid Efficiency, Conquest 800 Furnace Draft Inducer

FB-RFB241 | Rheem Ruud Weather King, RGP Mid Efficiency, Conquest 800 Furnace Draft Inducer

This furnace draft inducer is designed to replace original equipment in Rheem, Ruud, Weather King, RGP Mid Efficiency, and Conquest 800 furnace models. It ensures proper flue exhaust blower operation for efficient furnace performance.

Key Specifications

• Horsepower: 1/20 hp
• RPM: 3400
• Voltage: 115 Volts
• Amperage: 1.7 amps
• Bearings: Ball Bearings
• Enclosure: Metal Housing with fiber white gasket
• Motor Type: Shaded Pole Motor
• Speed: 1-Speed
• Additional Connection: Vacuum Hose Connection

Product Features & Fitment

This unit does not include a mounted sensor; transferring the sensor from the existing unit may be required during installation. It is compatible with multiple OEM part numbers across brands such as Fasco, Jakel, Intercity Products (ICP), Ametek, Packard, Rotom, and Nidec/US Motors, making it a versatile replacement option for various furnace draft inducer applications.

Cross Reference

• Rheem Ruud Weather King RGP Mid Efficiency, Conquest 800
• 70-24157-03, 70-22838-02, 70-101087-01, 70-24178-01, 70-24175-01, 70-24175-81, 70-24157-03, 70-22838-02, 70-22838-82, 70-24121-03, 70-24151-83, 70-22162-81, 70-24149-01, 4MF46, 5C089
• Fasco A066, 7021-11559, 7062-2615, 7062-4534, 7062-4702
• Jakel J238-150-1533, J238-150-15165
• Intercity Products (ICP) 1690042
• Ametek 117104-01, 117104-04, 117104-08, 117104-05, 117847-07, 117847-00, 119243-000, 00-81R02QJAA
• Packard 66847, 66838
• Fasco A066, 7058-1406

Warranty

1 Year Manufacturer Warranty
