FD32EA2D Nidec 1 1/2 HP 1800 RPM ( 1 speed, 3-Phase) 208-230/460V 56H Frame TEAO Farm Fan Motor

SKU:: FD32EA2D
UPC:
Weight:: 31.00 LBS
Width:: 14.00 (in)
Height:: 9.00 (in)
Depth:: 9.00 (in)
Shipping:: Free Shipping
ON SALE:: LIMITED TIME DISCOUNT
Voltage:: 208/230/460V
Horsepower:: 1/2 HP
RPM:: 1800
Phase:: Three Phase
Frame:: 56H
Enclosure:: TEAO
Hertz:: 50/60 Hz
Amperage:: 4.7/2.3 Amps
Bearings:: Ball Bearings
Speeds:: 1-Speed
Insulation Class:: Class F
Rotation:: Reversible
Mounting:: Rigid Base

Current Stock:

Was: $365.70

Now: $326.37

Quantity:

Adding to cart… The item has been added

Description
Literature
Compliance & Restrictions

FD32EA2D Nidec 1 1/2 HP 1800 RPM (1 speed, 3-Phase) 208-230/460V 56H Frame TEAO Farm Fan Motor

This Nidec FD32EA2D motor is a 1 1/2 HP, 1800 RPM, single-speed, three-phase farm fan motor designed for use in poultry and livestock ventilation systems. It serves as a reliable replacement motor for 56H frame TEAO applications requiring robust performance and durability.

Key Specifications

Horsepower: 1 1/2 HP
RPM: 1800
Voltage: 208-230/460V
Amperage: 4.7/2.3 amps
Enclosure: Totally-Enclosed Air-Over (TEAO)
Frame / Diameter: 56H Frame, Rolled Steel

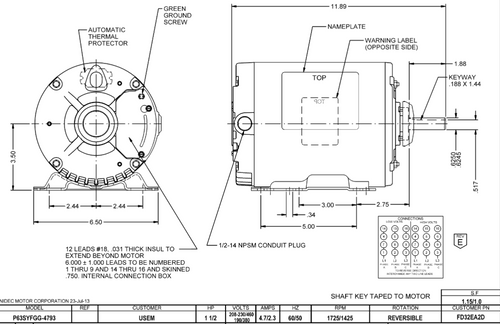

Shaft Dimensions: 5/8" diameter x 1 7/8" long, keyed shaft
Rotation: Reversible
Bearings: Ball Bearings

Product Features & Fitment

The motor features a rigid base mount for secure installation and includes an auto overload protection system. It is equipped with Class F insulation for enhanced thermal endurance and is suitable for operation on both 50 and 60 Hz power supplies. Wiring diagrams are provided on the motor nameplate to facilitate proper electrical connections.
