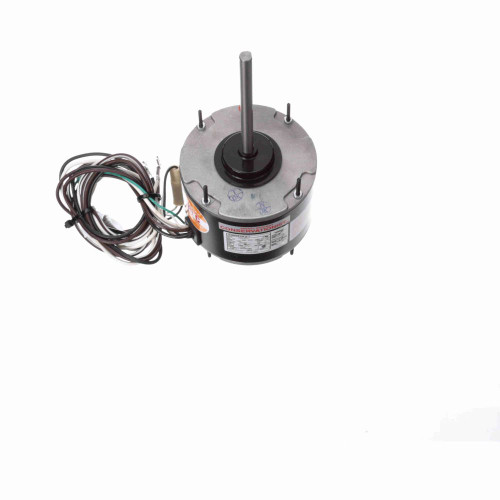

FE1026SF Century 1/4 hp 1075 RPM, 1-Speed, 208-230V, 70C° Condenser Motor

FE1026SF Century 1/4 hp 1075 RPM, 1-Speed, 208-230V, 70C° Condenser Motor

The FE1026SF is a 1/4 horsepower condenser motor designed for heat pump, refrigeration, and condenser applications. It serves as a reliable replacement motor with a permanent split capacitor (PSC) design, suitable for 70°C ambient temperature environments.

Key Specifications

• Horsepower: 1/4 hp
• RPM: 1075
• Voltage: 208-230V
• Amperage: 2.0 amps
• Enclosure: Totally Enclosed Air Over (TEAO)
• Shaft Dimensions: 1/2" x 6.5"
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features Class F insulation and requires a 5 MFD 370V capacitor (part # 5DV) for operation. It includes a reversing plug and four wires—two for power and two for a 2-prong capacitor connection. The motor supports all-angle mounting with extended through bolts and offers automatic overload protection for enhanced durability. It comes with 48" leads for flexible installation.
