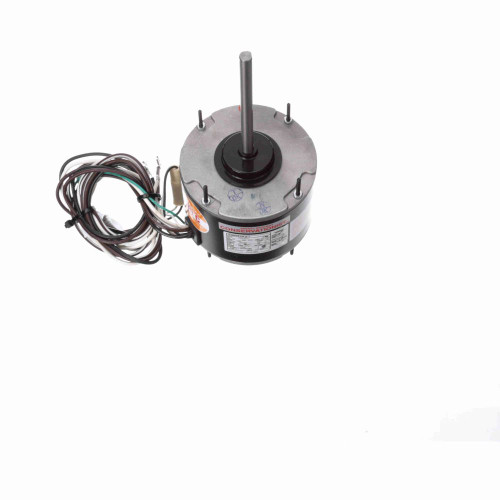

FE1038SF Century 1/3 hp 825 RPM, 1-Speed, 208-230V, 70C° Condenser Motor

FE1038SF Century 1/3 hp 825 RPM, 1-Speed, 208-230V, 70°C Condenser Motor

This Century FE1038SF motor is a 1/3 horsepower, single-speed condenser motor designed for use in heat pump, refrigeration, and condenser applications. It serves as a reliable replacement motor featuring a permanent split capacitor design for efficient operation.

Key Specifications

• Horsepower: 1/3 hp
• RPM: 825
• Voltage: 208-230V
• Amperage: 2.1 amps
• Enclosure: Totally Enclosed Air Over (TEAO)
• Shaft Dimensions: 1/2" diameter x 6.5" length
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor includes a reversing plug and requires a 7.5 MFD, 370V capacitor (part #7.5DV) for proper operation. It features class F insulation, automatic overload protection, and an all-angle mount with extended thru bolts for versatile installation. The motor is equipped with four wires—two for power and two for the two-prong capacitor connection—ensuring compatibility with standard condenser and heat pump setups.

Warranty

1 Year Manufacturer Warranty
