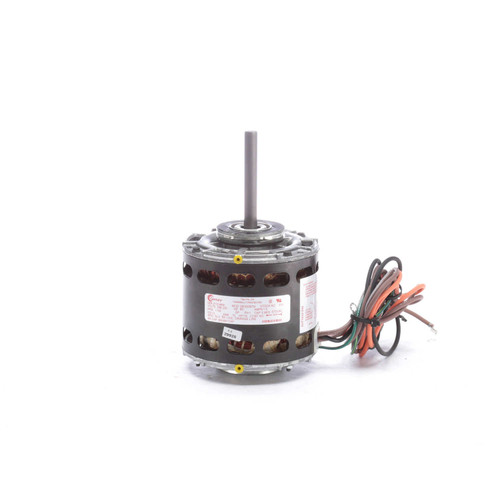

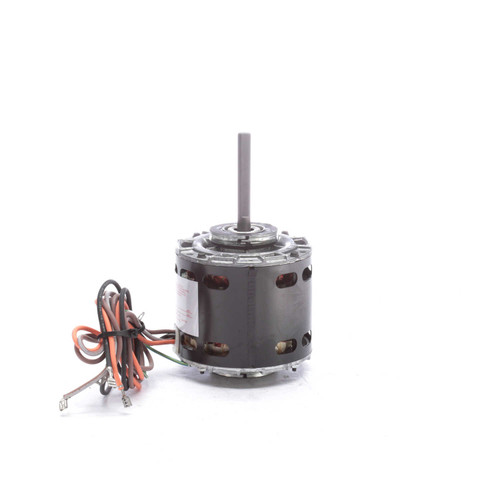

Model 515 Century Fedders Replacement Motor 1/4 hp, 1100 RPM, 1-Speed, 208-230V Century # 515

Model 515 Century Fedders Replacement Motor 1/4 hp, 1100 RPM, 1-Speed, 208-230V Century # 515

This Model 515 replacement motor is designed for Century and Fedders HVAC applications, providing reliable performance as a direct substitute for several OEM part numbers. It is ideal for systems requiring a 1/4 horsepower, single-speed motor with a counterclockwise rotation.

Key Specifications

• Horsepower: 1/4 hp
• RPM: 1100
• Voltage: 208-230 V
• Amperage: 1.5 A
• Frame / Diameter: 5" motor diameter
• Shaft Dimensions: 1/2" diameter x 4" length
• Rotation: CCW Lead End
• Bearings: Sleeve Bearings

Product Features & Fitment

The motor features a 4 1/4" case length and comes with 36" leads for flexible wiring options. Installation requires a 5 MFD 370V capacitor (sold separately, part #5DV) to ensure proper operation. This motor is a suggested replacement for multiple OEM references including S196-18-2, 2090, 5KCP29GK4566, and Fasco D1016, making it a versatile choice for HVAC repair and maintenance.

Cross Reference

• S196-18-2, S19600018002, S19600018004, 2090, 5KCP29GK4566, DE3G097, Fasco D1016

Warranty

1 Year Manufacturer Warranty
