FF25E2XS Nidec 25 hp 1800 RPM 200/400V ODP 284TS (Rigid Base) 3-Phase Fire Pump Motor

FF25E2XS Nidec 25 hp 1800 RPM 200/400V ODP 284TS (Rigid Base) 3-Phase Fire Pump Motor

SKU:
FF25E2XS
Weight:
225.00 LBS
Shipping:
Calculated at Checkout
ON SALE:
LIMITED TIME DISCOUNT
Was: $2,368.00
Now: $2,113.90
Adding to cart… The item has been added
  • 25 hp 1800 RPM, 70.0/35.0 amps 230/460 Volts 60 Hz Three Phase Motor

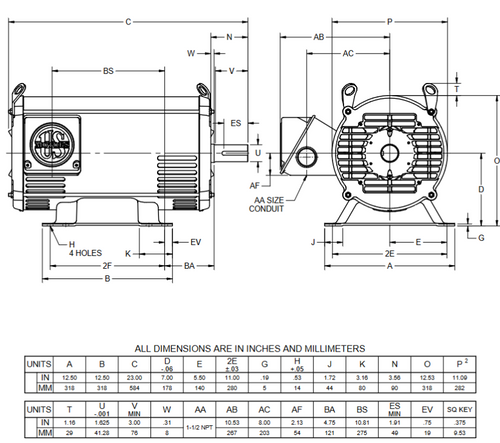

  • NEMA 284TS Rolled Steel Frame, Keyed Shaft 1 5/8" Diameter x 3 1/2"
  • Service Factor: 1.15 Overload protection = None
  • C-Face Mount, Ball Bearings, Class F Insulation, Reversible
  • 1 Year Manufacture Warranty

For fire pump applications per NFPA 20 where contaminants are minimal. Wiring diagram on motor name plate. ODP = Open Drip Proof. HM41

!
