FF30E1XV Nidec 30 hp 3600 RPM 3-phase 284JP Frame 200/400V ODP Vertical Close-Coupled Fire Pump Motor

225.00 LBS
Calculated at Checkout
  • 30 HP 3600 RPM, 79.0/40.0 amps, 200/400V 60 Hz, 3 Phase.

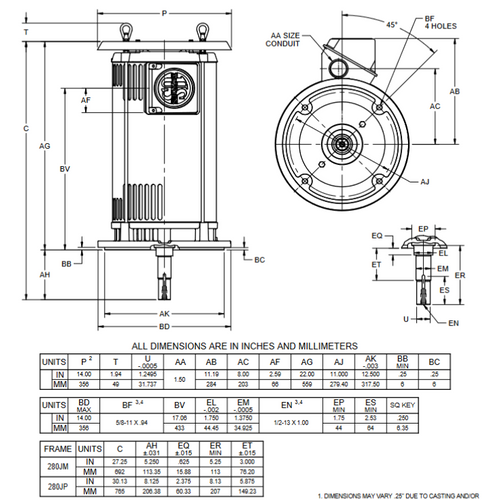

  • NEMA 284JP Rolled Steel Frame, JP stainless steel shaft
  • 1.15 Service Factor, Class F insulation
  • Reversible Rotation,
  • Face Mount, No Base, Ball Bearings,

Meets NFPA 20 standards. Close Coupled motors have the pump impeller mounted directly on the shaft. 1 Year Manufacture Warranty. ODP = Open Drip Proof, HM43
