75 HP 3600 RPM, 69.0 amps, 575V 60 Hz, 3 Phase.
NEMA 364JP Cast Iron Frame, JP stainless steel shaft
1.15 Service Factor, Class F insulation
Reversible Rotation,
Face Mount, No Base, Ball Bearings,
Meets NFPA 20 standards. Close Coupled motors have the pump impeller mounted directly on the shaft. 1 Year Manufacture Warranty. ODP = Open Drip Proof, HH15

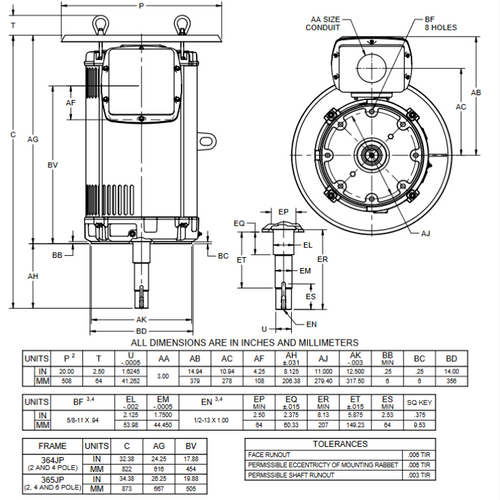

FF75E1GV Nidec 75 hp 3600 RPM 3-phase 364JP Frame 575V ODP Vertical Close-Coupled Fire Pump Motor
- SKU:
- FF75E1GV
- Weight:
- 580.00 LBS
- Shipping:
- Calculated at Checkout
- ON SALE:
- LIMITED TIME DISCOUNT
Nidec
FF75E1EV Nidec 75 hp 3600 RPM 3-phase 364JP Frame 230/460V ODP Vertical Close-Coupled Fire Pump Motor
Was:
$7,908.00
Now:
$7,060.60
Nidec
FF75E1XV Nidec 75 hp 3600 RPM 3-phase 364JP Frame 200/400V ODP Vertical Close-Coupled Fire Pump Motor
Was:
$9,522.00
Now:
$8,501.80
Nidec
FF50E1GV Nidec 50 hp 3600 RPM 3-phase 324JP Frame 575V ODP Vertical Close-Coupled Fire Pump Motor
Was:
$6,349.00
Now:
$5,669.00
Nidec
FF100E1GV Nidec 100 hp 3600 RPM 3-phase 365JP Frame 575V ODP Vertical Close-Coupled Fire Pump Motor
Was:
$10,951.00
Now:
$9,777.70
Nidec
FF20E1GV Nidec 20 hp 3600 RPM 3-phase 254JP Frame 575V ODP Vertical Close-Coupled Fire Pump Motor
Was:
$2,118.00
Now:
$1,890.90
Nidec
FF25E1GV Nidec 25 hp 3600 RPM 3-phase 256JP Frame 575V ODP Vertical Close-Coupled Fire Pump Motor
Was:
$2,752.00
Now:
$2,457.10
Nidec
FF60E1GV Nidec 60 hp 3600 RPM 3-phase 326JP Frame 575V ODP Vertical Close-Coupled Fire Pump Motor
Was:
$7,301.00
Now:
$6,518.80
Nidec
FF15E1GV Nidec 15 hp 3600 RPM 3-phase 215JP Frame 575V ODP Vertical Close-Coupled Fire Pump Motor
Was:
$1,661.00
Now:
$1,482.70
Nidec
FF40E1GV Nidec 40 hp 3600 RPM 3-phase 284JP Frame 575V ODP Vertical Close-Coupled Fire Pump Motor
Was:
$4,618.00
Now:
$4,123.10
