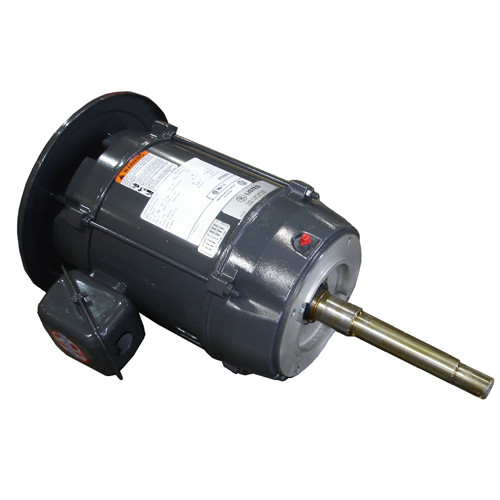

FF75E1EV Nidec 75 hp 3600 RPM 3-phase 364JP Frame 230/460V ODP Vertical Close-Coupled Fire Pump Motor

FF75E1EV Nidec 75 hp 3600 RPM 3-phase 364JP Frame 230/460V ODP Vertical Close-Coupled Fire Pump Motor

SKU:
FF75E1EV
Weight:
420.00 LBS
Width:
23.00 (in)
Height:
36.00 (in)
Depth:
30.00 (in)
Shipping:
Calculated at Checkout
ON SALE:
LIMITED TIME DISCOUNT
Voltage:
230/460V
Horsepower:
75 HP
RPM:
3600
Phase:
Three Phase
Frame:
364JP
Enclosure:
ODP
Hertz:
60 Hz
Amperage:
172/86.0 Amps
Bearings:
Ball Bearings
Insulation Class:
Class F
Rotation:
Reversible
Was: $9,094.20
Now: $8,119.69
Adding to cart… The item has been added
  • 75 HP 3600 RPM, 172/86.0 amps, 230/460V 60 Hz, 3 Phase.
  • NEMA 364JP Cast Iron Frame, JP stainless steel shaft
  • 1.15 Service Factor, Class F insulation
  • Reversible Rotation,
  • Face Mount, No Base, Ball Bearings,

Meets NFPA 20 standards. Close Coupled motors have the pump impeller mounted directly on the shaft. 1 Year Manufacture Warranty. ODP = Open Drip Proof, HH14

!
