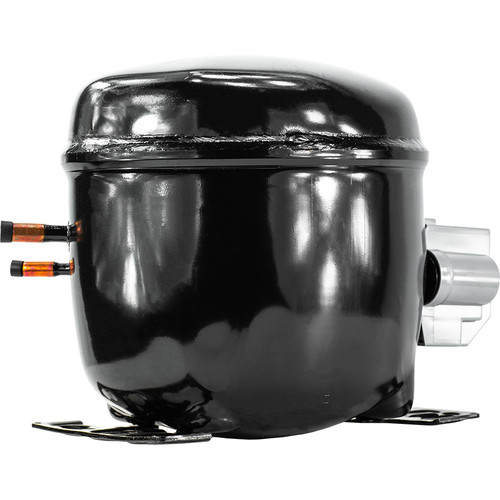

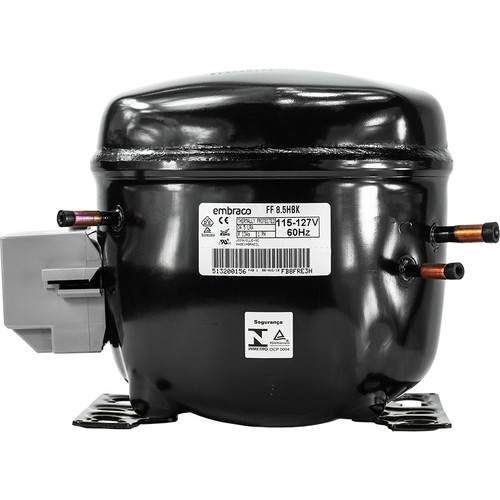

FF8.5HBK Embraco Refrigeration Compressor, R134a

The FF8.5HBK is a 1/4 HP Embraco refrigeration compressor designed for use with R134a refrigerant. It is suitable for low, medium, and high back pressure applications, including ice makers and similar refrigeration equipment, operating efficiently within evaporating temperatures from -31°F to 59°F.

Key Specifications

• Horsepower: 1/4 HP
• Voltage: 115V
• Amperage (LRA): 34.5
• Refrigerant Gas: R134a
• BTU/H: 3135
• Frequency: 60 Hz
• Phase: Single Phase
• Motor Type: RSIR/CSIR
• Foot Mount Dimensions: 6.5" x 4.0"

Product Features & Fitment

This compressor features normal start torque and includes rubber foot mounts for secure installation. It supports low, medium, and high back pressure (L/M/HBP) applications, making it versatile for various refrigeration needs. Cross references include models from Embraco, Tecumseh, and Copeland, ensuring compatibility with multiple systems. Diagrams for dimensions and wiring are available for precise installation guidance.

Cross Reference

• s: 30-FF8.5HBK, EMI70HER, EMI70HNR
• Tecumseh: AEA1370YXA, AEA3430YXA
• Copeland: ARE29C4E-IAA, ARE27C3E-IAA

Warranty

• Product Brochure
