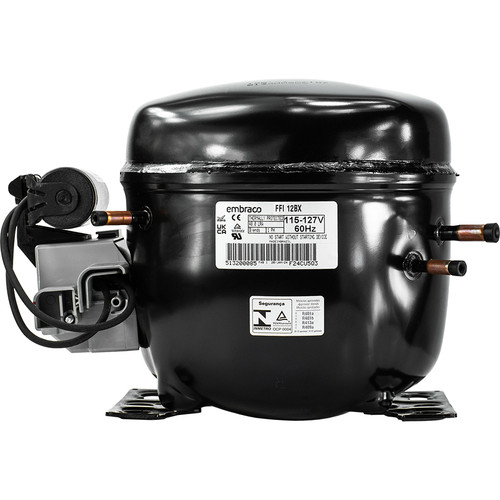

30-FFI12BX Embraco Refrigeration Compressor, 5000 BtuH, 115V, R12
- 1/3 HP, 115 Volts, 60HZ Single Phase
- Refrigerant Gas: R12
- L/MBP: 1350, HBP32: 5000
- Start Torque: High, Motor Type: CSIR, LRA: 43.0
- Foot Mount Dimensions: 6.5" x 4.0"
- Includes Rubber Foot Mounts
Application: L/M/HBP - (Low/Medium/High Back Pressure) Evaporating temperatures between -31°F and 59°F, Applications: Ice makers, etc.
Cross References: 30-FFI12BX, FFI12BX
Tecumseh: AEA440AXA, AEA4448AXA
Copeland: ARE37C3-IAA, AFH2-0033-IAA, JFB1-0033-IAA
Click here for definitions, foot prints and diagrams.
Dimension Diagram - PD2
Wiring Diagram - WD3
