FX02BK002 | 2 HP 3600 RPM 56HC 208-230/460V 3 Phase TEFC, FLEX-IN-1 Marathon Electric Motor

FX02BK002 | 2 HP 3600 RPM 56HC 208-230/460V 3 Phase TEFC, FLEX-IN-1 Marathon Electric Motor

The Marathon FLEX-IN-1™ electric motor is a versatile 2 HP, 3600 RPM motor designed to replace hundreds of discontinued or out-of-stock brand name motors. It is ideal for industrial applications requiring a reliable, inverter-duty motor with multiple mounting options and flexible conduit box positioning.

Key Specifications

• Horsepower: 2 HP
• RPM: 3600
• Voltage: 208-230/460 V
• Amperage: 5.6-5.0/2.5 A
• Enclosure: TEFC (Totally Enclosed Fan Cooled)
• Frame / Diameter: 56HC
• Rotation: 3 Phase
• Bearings: Double-sealed ball bearings

Product Features & Fitment

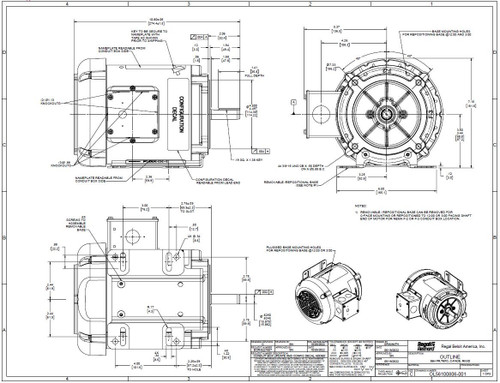

This motor features a patent-pending multi-mount, repositionable bolt-on base and C-Face, allowing rapid reconfiguration of the conduit box compared to traditional general-purpose motors. The conduit box is rotatable 180° for 360° conduit entry, with 7/8” and 1-1/8” knockouts on all sides, and includes a gasket to maintain an IP44 or better enclosure rating after repositioning.

The combination base supports NEMA 56, 56H, 143T, and 145T mounting and can be rotated for NEMA F-2 or F-3 conduit box locations, with F-1 as the standard factory setting. Additional features include a rotatable fan guard (90° increments) and cast-in end frame markings for conduit box base location. This motor is designed for easy replacement of standard 56 frame motors with or without C-face mounts, providing excellent design and cost-effective performance.
