sale
Marathon

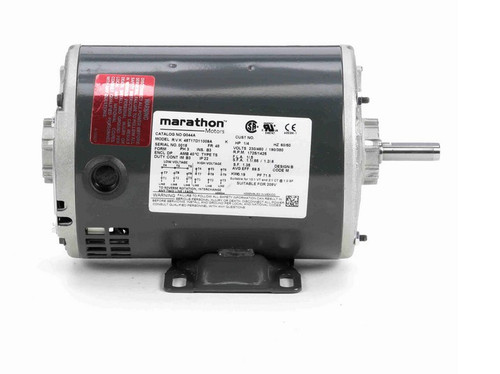

G044A Marathon 1/4 hp 1800 RPM 230/460V 3-Phase 48 Frame ODP (rigid base) Motor
(No reviews)
Write a Review
Write a Review
Marathon
G044A Marathon 1/4 hp 1800 RPM 230/460V 3-Phase 48 Frame ODP (rigid base) Motor
$358.46
$309.24
SKU
G044A
Shipping
Free Shipping
Compliance Tab
/content/product_tabs/p65warnings.html
ON SALE
DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage
230/460V
Horsepower
1/4 HP
RPM
1800
Phase
Three Phase
Frame
48
Enclosure
ODP
Hertz
60 Hz
Amperage
1.0/0.5 Amps
Bearings
Ball Bearings
Service Factor
1.35
Insulation Class
Class B
Mounting
Rigid Base
G044A Marathon 1/4 hp 1800 RPM 230/460V 3-Phase 48 Frame ODP (rigid base) Motor
This Marathon general-purpose three-phase electric motor is designed for reliable operation in various industrial and HVAC applications. It serves as a direct replacement for motors requiring a 1/4 horsepower rating with a 48 frame size and open drip-proof enclosure.
Key Specifications
- Horsepower: 1/4 hp
- RPM: 1800
- Voltage: 230/460V
- Amperage: 1.0/0.5 amps
- Enclosure: Open Drip-Proof (ODP)
- Frame / Diameter: NEMA Rolled Steel 48 frame
- Shaft Dimensions: 1/2" Diameter x 1 1/2" Length, keyed
- Rotation: Reversible
- Bearings: Ball Bearings
Product Features & Fitment
The motor features a rigid base for secure mounting and includes a keyed shaft to ensure proper coupling with driven equipment. It is equipped with Class B insulation and designed for three-phase 60 Hz power supply. Wiring diagrams are provided on the motor nameplate to facilitate installation.
Warranty
3 Year Manufacturer Warranty
3 Year Manufacturer Warranty
| Compliance Tab | /content/product_tabs/p65warnings.html |
|---|---|
| ON SALE | DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM |
| Voltage | 230/460V |
| Horsepower | 1/4 HP |
| RPM | 1800 |
| Phase | Three Phase |
| Frame | 48 |
| Enclosure | ODP |
| Hertz | 60 Hz |
| Amperage | 1.0/0.5 Amps |
| Bearings | Ball Bearings |
| Service Factor | 1.35 |
| Insulation Class | Class B |
| Mounting | Rigid Base |
Related Products
sale
Add to Cart
The item has been added

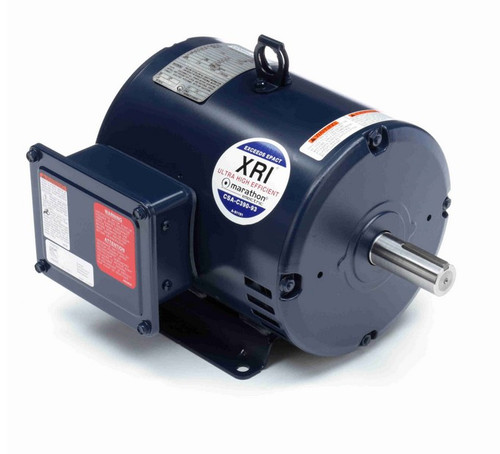

U426B Marathon 3 hp 1800 RPM 230/460V 3-Phase 182T Frame ODP (rigid base) Motor
