Marathon

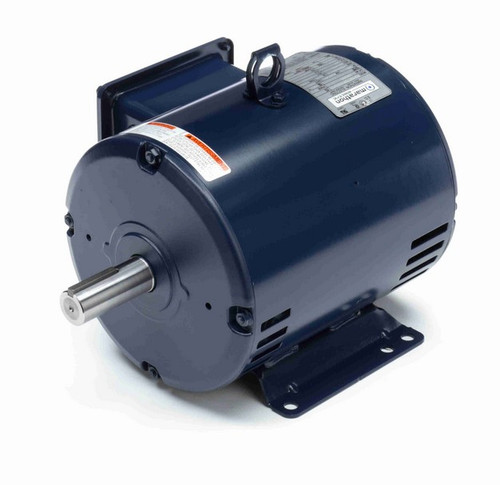

U426B Marathon 3 hp 1800 RPM 230/460V 3-Phase 182T Frame ODP (rigid base) Motor
(No reviews)
Write a Review
Write a Review
Marathon
U426B Marathon 3 hp 1800 RPM 230/460V 3-Phase 182T Frame ODP (rigid base) Motor
$987.74
$846.40
SKU
MU426B
UPC
7.23E+11
Availability
LIMITED STOCK
Shipping
Calculated at Checkout
Compliance Tab
/content/product_tabs/p65warnings.html
ON SALE
LIMITED TIME DISCOUNT
Voltage
230/460V
Horsepower
3 HP
RPM
1800
Phase
Three Phase
Frame
182T
Enclosure
ODP
Hertz
60 Hz
Amperage
8.0/4.0 Amps
Bearings
Ball Bearings
Service Factor
1.15
Insulation Class
Class F
Mounting
Rigid Base
- 3 hp 1800 RPM, 8.0/4.0 amps 230/460 Volts 60 Hz. Three Phase
- NEMA Rolled Steel 182T frame, Keyed Shaft 1 1/8" Diameter x 2 3/4"
- Service Factor: 1.15, Overload protection = Auto
- Rigid Base, Reversible, Ball Bearings, Class F Insulation
- 3 Year Manufacture Warranty
General purpose three phase electric motor, Shaft has keyway. Wiring diagram on motor name plate. ODP = Open Drip-Proof. 182TTDW16049
