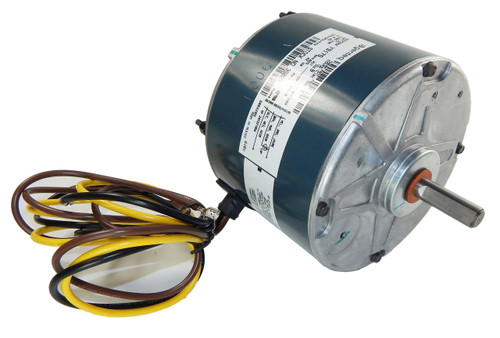

G3907 | Carrier Condenser Motor HC33GE233A 1/10hp 1100 RPM 208-230V Genteq

Carrier Condenser Motor HC33GE233A 1/10hp 1100 RPM 208-230V Genteq

This Carrier replacement condenser motor is designed for HVAC applications, providing reliable performance as a direct aftermarket substitute for several Carrier and compatible models. Manufactured by Genteq, it is suitable for use in air conditioning systems requiring a 1/10 hp motor with a counterclockwise rotation.

Key Specifications

• Horsepower: 1/10 hp
• RPM: 1100
• Voltage: 208-230 V
• Amperage: 0.75 A
• Frame / Diameter: 5 5/8"
• Shaft Dimensions: 1/2" diameter x 1-1/2" length
• Rotation: Counterclockwise (CCW) shaft end
• Enclosure: TEAO (Totally Enclosed Air Over)
• Ambient Temperature: 40° C

Product Features & Fitment

This single-speed motor features a 3-lead, 2-prong connection and requires a separate 5 MFD capacitor (not included) for operation. The motor’s stud mounting pattern measures 5-1/4" on center, facilitating straightforward installation in compatible condenser units. It is a suggested replacement for Carrier models HC33GE233A, HC33GE233, HC34GE234, HC33GE230, as well as equivalent models from GE Genteq, Dayton, and Fasco.

Cross Reference

• GE Genteq 5KCP39BGS069S 5KCP39BGY824S 5KCP39BGV573AS
• Carrier HC33GE233A, HC33GE233, HC34GE234 HC33GE230
• Dayton 6DLL6
• Fasco 3S001

Warranty

1 Year Manufacturer Warranty
