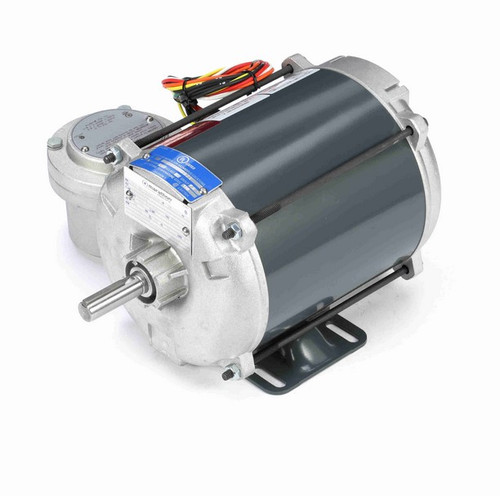

G639 Marathon 1/4 hp 1800 RPM 115/208-230V Explosion Proof 56 Frame EPNV (rigid base) Motor

G639 Marathon 1/4 hp 1800 RPM 115/208-230V Explosion Proof 56 Frame EPNV (rigid base) Motor

This Marathon 1/4 horsepower explosion-proof motor is designed for hazardous environments requiring reliable, safe operation. It is ideal for replacing or installing in industrial applications where Class I and II explosion-proof ratings are necessary.

Key Specifications

• Horsepower: 1/4 hp
• RPM: 1800
• Voltage: 115/208-230 V, 60 Hz
• Amperage: 4.8/2.3-2.4 A
• Enclosure: Explosion-Proof Non-Ventilated (EPNV)
• Frame / Diameter: NEMA Rolled Steel 56 Frame
• Shaft Dimensions: Keyed Shaft, 5/8" Diameter x 1 7/8" Length
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a rigid base mounting for secure installation and includes a keyed shaft for positive drive connection. It is capacitor start/induction run with Class B insulation and automatic overload protection. Wiring diagrams are provided on the motor nameplate for ease of installation. The motor meets explosion-proof standards for Class I Groups C & D and Class II Groups F & G, T3B temperature rating.

Warranty

1 Year Manufacturer Warranty
