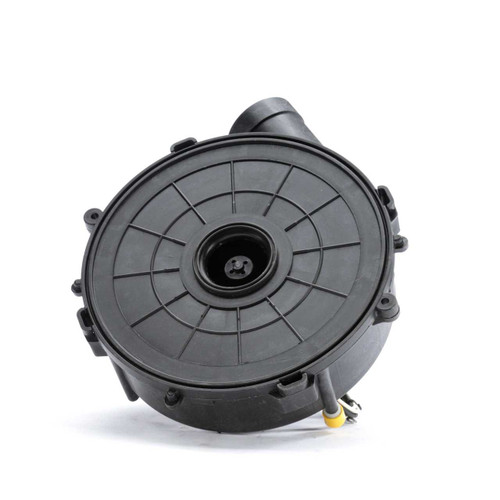

Fasco A180 Goodman Furnace Draft Inducer 115V (201-90601, 7021-9625)

Fasco A180 Goodman Furnace Draft Inducer 115V (201-90601, 7021-9625)

The Fasco A180 is a direct replacement draft inducer motor designed for Goodman and Amana furnaces. It is compatible with multiple OEM part numbers and is primarily used to ensure proper venting and combustion efficiency in residential heating systems.

Key Specifications

• Horsepower: 1/30 hp
• RPM: 3400
• Voltage: 115 V
• Amperage: 1.8 A
• Rotation: CCWSE (Counterclockwise Shaft End)
• Bearings: Ball Bearings
• Motor Type: Shaded Pole

Product Features & Fitment

This single-speed draft inducer motor features ball bearings for extended durability and smooth operation. It does not include a gasket, so ensure to source one separately if required for installation. The motor is a suggested replacement for various models from Armstrong Johnson, Amana, Fasco, Lennox, Rotom, and Dayton, making it a versatile choice for furnace maintenance and repair.

Cross Reference

• Armstrong Johnson Air ease Efficiency Ultra 90, 40404-003G-004, 44431-001, 2019061, 40404-003, 117521-00, 110514-00, 40404-004, 2862-513-040 367170004, R45037-001, 7021-11715, JA1N062
• Amana 20190601, 201-90601
• Fasco 7021-9625, 40404-003, 117521-00, 116517-05, 116517-07, 110514-00
• Lennox G26 High Efficiency, 68K21, 66404, 7021-9625, 7021-11715, 7021-10302, 7021-9450, 117813-00
• Suggested replacement for: JB1N069; 117225-03
• Rotom FB-RFB547
• Dayton 45KC74

Warranty

1 Year Manufacturer Warranty
