TECO WESTINGHOUSE, NEMA PREMIUM ELECTRIC MOTOR
- 2 hp 3600 RPM, 4.92/2.46 amps 230/460 Volts 60 Hz. Three Phase

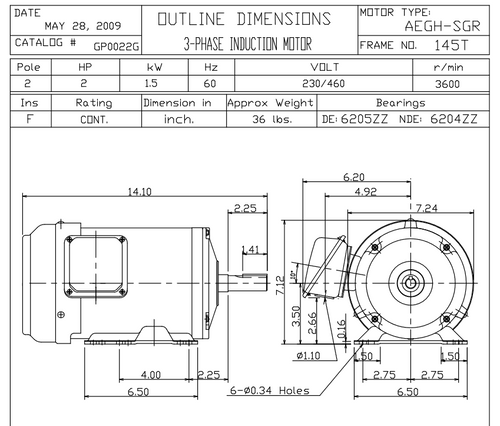

- NEMA 143/145TC Frame, Keyed Shaft 7/8" Diameter x 2 1/4"
- Rolled Steel Frame, Enclosure: Totally Enclosed Fan Cooled (IP44)
- Service Factor: 1.15, Thermal Overload Protection: None
- Rigid Base, Reversible, Ball Bearings, Class F Insulation
- Suitable for Inverter Use per NEMA MG-1 Part 31.4.4.2
- Inverter Duty Speed Range: 20:1 Variable Torque, 10:1 Constant Torque
- Motors are U.L. Recognized, CSA Approved and CE Marked
- 1 Year Manufacture Warranty
Motor comes with Shaft Grounding Rings (SGR) to protect bearings from excessive currents. Applications: Fans & Blowers, Pumps, Compressors, Mixers, Conveyors, HVAC Equipment
