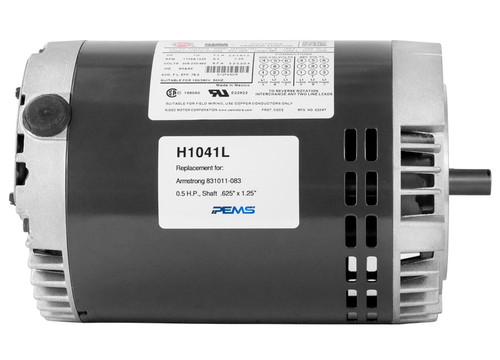

H1041L 1/2 hp 1725 RPM 230/460V Circulator Pump Motor 831011-083, 111046
H1041L 1/2 hp 1725 RPM 230/460V Circulator Pump Motor 831011-083, 111046
H1041L 1/2 hp 1725 RPM 230/460V Circulator Pump Motor 831011-083, 111046
H1041L 1/2 hp 1725 RPM 230/460V Circulator Pump Motor 831011-083, 111046
H1041L 1/2 hp 1725 RPM 230/460V Circulator Pump Motor 831011-083, 111046
H1041L 1/2 hp 1725 RPM 230/460V Circulator Pump Motor 831011-083, 111046

Nidec

H1041L 1/2 hp 1725 RPM 230/460V Circulator Pump Motor 831011-083, 111046

(No reviews) Write a Review
$459.99
$379.95
SKU UH1041L
Availability IN STOCK
Shipping Free Shipping
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE DISCOUNTED & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage 230/460V
Horsepower 1/2 HP
RPM 1725
Phase Three Phase
Frame 56CZ
Amperage 3.4/1.7 Amps
Cross Reference H1041 4UE17 CP-R1368 111046 (check Specs) 831011-083, 5GD87, 193921, P56AC41A01
Adding to cart… The item has been added
Description

Hot Water Boiler & Booster Pumps Replacement Motor

  • 1/2 hp 1725 RPM 3.4/1.7 amps, 208-230/460V Three Phase
  • 56CZ Frame
  • Shaft: 5/8" x 1.25"
  • Bolt Circle 5-7/8" O.C.
  • Rotation = Reversible
  • 1 Year Manufacture Warranty

Motor is manufactured by Nidec Corp.
Be sure to compare the specs of this motor to yours

Suggested replacement for:
Armstrong 811757-003, 811757-020, 811757-023, 831011-083
Bell & Gossett 111046, M80037, M80070, MOT247-6, MAGOOG-5106B
Century H1041L
Dayton 4UE17
Rotom CP-R1368
5GD87, 193921, P56AC41A01

Specifications
Voltage 230/460V
Horsepower 1/2 HP
RPM 1725
Phase Three Phase
Frame 56CZ
Amperage 3.4/1.7 Amps
Cross References

H1041 4UE17 CP-R1368 111046 (check Specs) 831011-083, 5GD87, 193921, P56AC41A01

!
