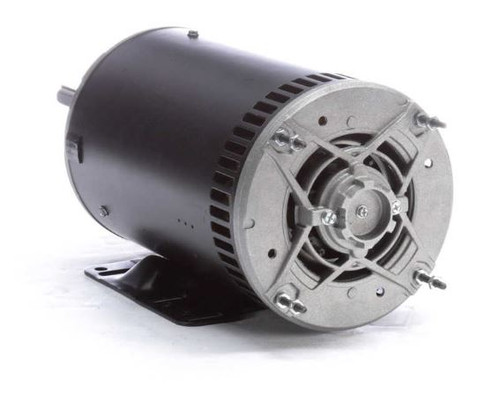

H1054AV1 Century 1.5 HP 850 RPM JuggerNaut Vertical Condenser Fan Electric Motor 460/208-230V

The H1054AV1 is a 1.5 HP vertical condenser fan motor designed for HVAC and industrial applications. It replaces the Century/AO Smith H1054A model and features a robust, energy-efficient three-phase design suitable for inverter duty.

Key Specifications

• Horsepower: 1.5 HP
• RPM: 850
• Voltage: 460/208-230V
• Amperage: 3.3/6.6 Amps
• Frame / Diameter: 56HZ Frame
• Shaft Dimensions: 5/8" x 6"
• Bearings: Double Sealed Ball Bearings

Product Features & Fitment

This motor includes a removable 56H rigid base and positioning lugs for easy belly-band mounting with shaft-up orientation. It features a quick connect design and comes with extra mounting nuts for convenient installation. The motor is equipped with Class F moisture-resistant insulation, conductive bearing grease optimized for inverter applications, and automatic overload protection. Additional features include a large water slinger and the VCM™ (Voltage Change Module) for flexible voltage configurations. It is rated for continuous duty, air-over cooling, and can operate in ambient temperatures up to 70°C.

Cross Reference

• Century/AO Smith H1054A

Warranty

• Specification Sheet
