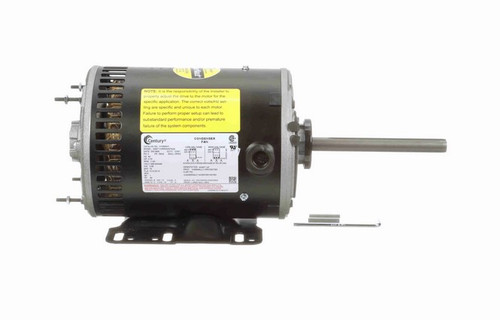

H1056AV1 Century 3/4 hp 3-phase 200-230/460V 1200 RPM OPAO 56HZ Frame Condenser Fan Motor

H1056AV1 Century 3/4 hp 3-phase 200-230/460V 1200 RPM OPAO 56HZ Frame Condenser Fan Motor

This Century 3/4 horsepower condenser fan motor is designed for use in air conditioning coolant condenser units, typically installed outdoors. It serves as a reliable replacement motor compatible with 3-phase systems operating at 200-230/460 volts.

Key Specifications

• Horsepower: 3/4 hp
• RPM: 1200
• Voltage: 200-230/460 V
• Amperage: 2.8-3.0/1.3 A
• Enclosure: Open Air-Over (OPAO)
• Frame / Diameter: NEMA 56HZ Frame
• Shaft Dimensions: Keyed shaft, 5/8" diameter x 5" length
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a rigid base for stable mounting and automatic thermal protection for enhanced durability. It is inverter duty rated (JuggerNaut®) to handle variable frequency drive applications. The OPAO enclosure requires the motor to be installed within the air stream, and the shaft orientation can be either vertical or horizontal depending on the condenser unit configuration.

Warranty

1 Year Manufacturer Warranty
