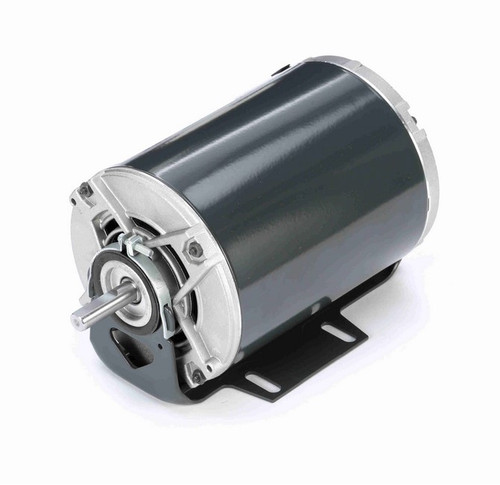

H112 Marathon 1/6 hp (1 speed) 115V 1200 RPM ODP 48 Frame Resilient Base Blower Motor

H112 Marathon 1/6 hp (1 speed) 115V 1200 RPM ODP 48 Frame Resilient Base Blower Motor

This Marathon blower motor is designed for HVAC applications requiring reliable air movement within buildings. It serves as a direct replacement for motors with similar specifications, providing consistent performance in blower systems.

Key Specifications

• Horsepower: 1/6 hp
• RPM: 1200
• Voltage: 115V, 60 Hz
• Amperage: 4.0 amps
• Enclosure: Open Drip Proof (ODP)
• Frame / Diameter: NEMA 48 Frame
• Shaft Dimensions: 1 1/2" length x 1/2" diameter
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

The motor features a resilient base for reduced vibration and noise during operation. It is designed for flexible installation with a flat shaft and reversible rotation, suitable for both vertical and horizontal shaft orientations. The motor includes Class B insulation and does not have thermal protection.

Warranty

1 Year Manufacturer Warranty
