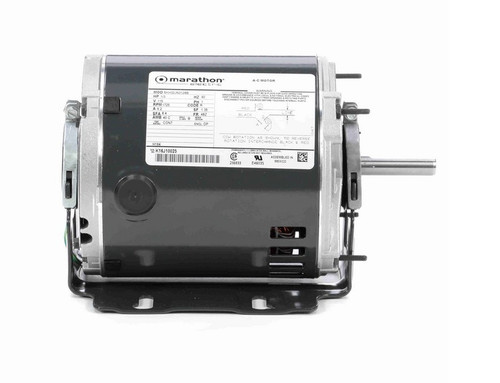

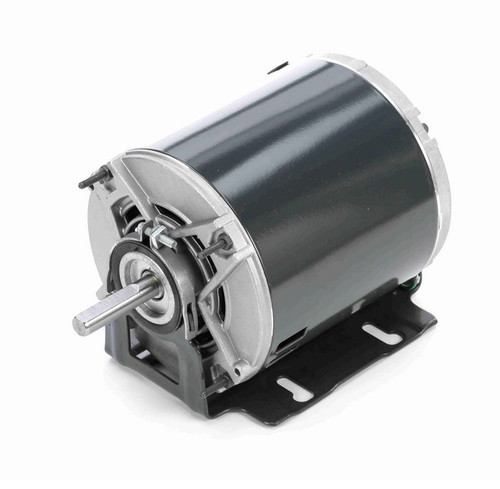

H164 Marathon 1/3 hp (1 speed) 115V 1800 RPM ODP 48Z Frame Resilient Base Blower Motor

H164 Marathon 1/3 hp (1 speed) 115V 1800 RPM ODP 48Z Frame Resilient Base Blower Motor

This Marathon blower motor is a 1/3 horsepower, single-speed motor designed for air circulation applications in residential and commercial buildings. It replaces Century 922L, S48F18A01, and Dayton 2JFT8 models, providing reliable performance in HVAC systems.

Key Specifications

• Horsepower: 1/3 hp
• RPM: 1800
• Voltage: 115V
• Amperage: 6.2 amps
• Enclosure: Open Drip Proof (ODP)
• Frame / Diameter: NEMA 48Z Frame
• Shaft Dimensions: 1 7/8" length x 1/2" diameter
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a resilient base for stable mounting and is designed for versatile shaft orientation, either vertical or horizontal. It includes Class B insulation and operates on split phase power at 60 Hz. Thermal protection is not included.

Cross Reference

• Century 922L, S48F18A01
• Dayton 2JFT8

Warranty

1 Year Manufacturer Warranty
