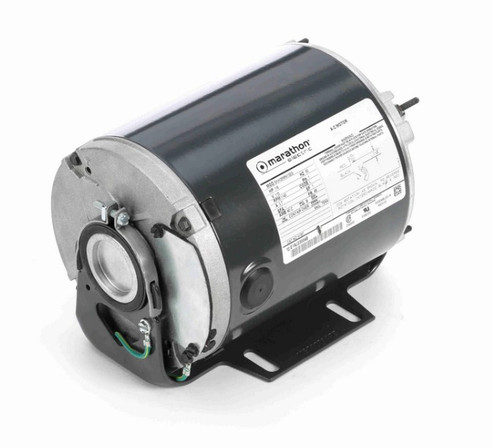

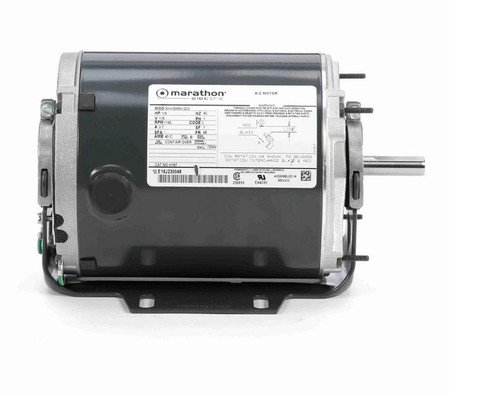

H197 Marathon 1/6 hp 1200 RPM 115V TENV 48 Frame Split-Phase Farm Motor

H197 Marathon 1/6 hp 1200 RPM 115V TENV 48 Frame Split-Phase Farm Motor

This Marathon 1/6 horsepower motor is a single-phase, split-phase design intended for general-purpose farm applications. It features a totally-enclosed non-ventilated (TENV) enclosure for reliable operation in demanding environments.

Key Specifications

• Horsepower: 1/6 hp
• RPM: 1200
• Voltage: 115 V
• Amperage: 3.7 A
• Enclosure: Totally-Enclosed Non-Ventilated (TENV)
• Frame / Diameter: NEMA 48 Frame
• Shaft Dimensions: 1/2" Diameter x 1 1/2" Length
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

The motor includes a resilient base for stable mounting and is designed for easy installation in farm equipment. It operates with a service factor of 1.0 and does not include overload protection. Its ball bearing construction ensures durability and smooth operation.

Warranty

1 Year Manufacturer Warranty
