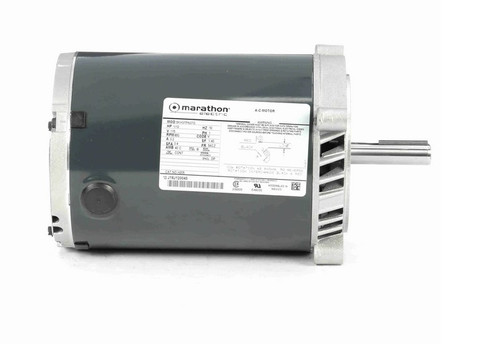

H205 Marathon 1/12 hp 900 RPM 56CZ Frame 115V (No Base) ODP Exhaust Blower Motor
H205 Marathon 1/12 hp 900 RPM 56CZ Frame 115V (No Base) ODP Exhaust Blower Motor
H205 Marathon 1/12 hp 900 RPM 56CZ Frame 115V (No Base) ODP Exhaust Blower Motor
H205 Marathon 1/12 hp 900 RPM 56CZ Frame 115V (No Base) ODP Exhaust Blower Motor
H205 Marathon 1/12 hp 900 RPM 56CZ Frame 115V (No Base) ODP Exhaust Blower Motor
H205 Marathon 1/12 hp 900 RPM 56CZ Frame 115V (No Base) ODP Exhaust Blower Motor
H205 Marathon 1/12 hp 900 RPM 56CZ Frame 115V (No Base) ODP Exhaust Blower Motor
H205 Marathon 1/12 hp 900 RPM 56CZ Frame 115V (No Base) ODP Exhaust Blower Motor

Marathon

H205 Marathon 1/12 hp 900 RPM 56CZ Frame 115V (No Base) ODP Exhaust Blower Motor

(No reviews) Write a Review
$585.12
$504.39
SKU MH205
Shipping Free Shipping
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage 115V
Horsepower 1/12 HP
RPM 900
Frame 56CZ
Enclosure ODP
Hertz 60 Hz
Type Split Phase
Amperage 3.2 Amps
Bearings Ball Bearings
Service Factor 1.4
Insulation Class Class B
Rotation Reversible
Adding to cart… The item has been added
Description
  • 1/12 hp 900 RPM, 3.2 amps 115V 60hz. Split Phase Motor
  • NEMA 56CZ frame rolled steel motor, 5/8" dia x 2 1/4" shaft. 60 Hz
  • Service Factor: 1.4, Open Drip Proof (ODP), Overload protection: None
  • No base, Reversible rotation, Ball Bearings; Class B Insulation
  • One Year Manufacture Warranty

Belt drive blower motor. Wiring diagram on motor name plate. H205

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage 115V
Horsepower 1/12 HP
RPM 900
Frame 56CZ
Enclosure ODP
Hertz 60 Hz
Type Split Phase
Amperage 3.2 Amps
Bearings Ball Bearings
Service Factor 1.4
Insulation Class Class B
Rotation Reversible
!
