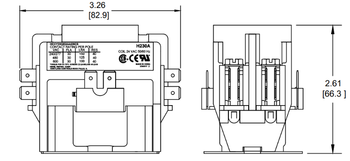

H230A, 2 Pole, 30 Amp, 24V Coil Contactor
The H230A is a 2-pole contactor designed for industrial motor control applications. It features a 24V AC coil and is suitable for replacing equivalent models such as the 2S30-A, B1360321, and Furnas 45DG10AJA.
Key Specifications
- Voltage: 24V AC coil
- Amperage: 30 Amp full load inductive
- Locked Rotor Amps: 150/125/100
- Resistive Amps: 40 Amp
- Horsepower: 2 to 3 HP at 240V, single phase
- Coil VA Inrush: 30 VA
Product Features & Fitment
This contactor supports single-phase motor applications with a horsepower range of 2 to 3 HP at 240 volts. It is designed for reliable switching with a coil voltage of 24V AC and includes specifications for locked rotor and resistive amperage ratings. The H230A is compatible with standard mounting configurations for easy installation and replacement of cross-referenced models.
