HB0018 TECO-Westinghouse 1 hp 900 RPM 182T 460V TEFC Severe Duty Petro-Chem 3-Ph Motor

HB0018 TECO-Westinghouse 1 hp 900 RPM 182T 460V TEFC Severe Duty Petro-Chem 3-Ph Motor

The HB0018 is a TECO-Westinghouse NEMA Premium electric motor designed for severe duty petrochemical applications. It is engineered to replace standard motors in hazardous environments requiring Class 1, Division 2 certification, providing reliable performance in explosive gas atmospheres.

Key Specifications

• Horsepower: 1 hp
• RPM: 900
• Voltage: 460 V
• Amperage: 2.08 A
• Enclosure: Totally Enclosed Fan Cooled (TEFC), IP56

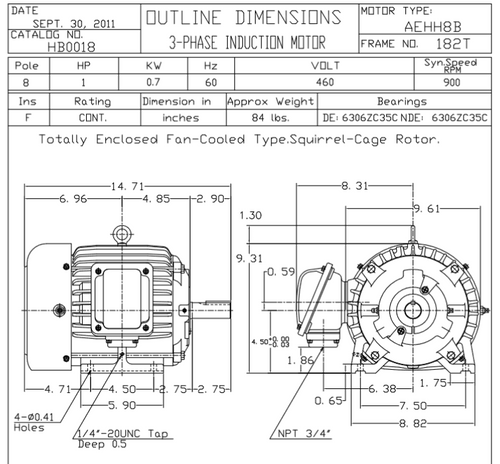

• Frame / Diameter: NEMA 182T Frame
• Shaft Dimensions: 2 3/4" length x 1 1/8" diameter, keyed shaft
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a cast iron frame with a rigid base for secure mounting and durability in harsh environments. It is suitable for inverter use per NEMA MG-1 Part 31.4.4.2, supporting a variable torque speed range of 20:1 and constant torque speed range of 10:1. The motor includes Class F insulation and is part of the E2-E841 family, specifically certified for use in severe duty petrochemical applications involving explosive gases.

Warranty

1 Year Manufacturer Warranty
