HB0408 TECO-Westinghouse 40 hp 900 RPM 365T 460V TEFC Severe Duty Petro-Chem 3-Ph Motor
HB0408 TECO-Westinghouse 40 hp 900 RPM 365T 460V TEFC Severe Duty Petro-Chem 3-Ph Motor
HB0408 TECO-Westinghouse 40 hp 900 RPM 365T 460V TEFC Severe Duty Petro-Chem 3-Ph Motor
HB0408 TECO-Westinghouse 40 hp 900 RPM 365T 460V TEFC Severe Duty Petro-Chem 3-Ph Motor

TECO WESTINGHOUSE

HB0408 TECO-Westinghouse 40 hp 900 RPM 365T 460V TEFC Severe Duty Petro-Chem 3-Ph Motor

(No reviews) Write a Review
$7,822.24
SKU HB0408
Shipping Calculated at Checkout
Voltage 460V
Horsepower 40 HP
RPM 900
Phase Three Phase
Frame 365T
Enclosure TEFC
Hertz 60 Hz
Amperage 51.6 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
Duty Severe Duty
Adding to cart… The item has been added
Description

TECO WESTINGHOUSE, NEMA PREMIUM ELECTRIC MOTOR

  • 40 hp 900 RPM, 51.6 amps 460 Volts 60 Hz Three Phase

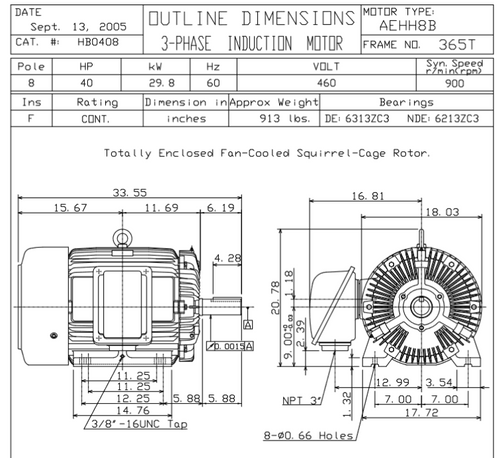

  • NEMA 365T Frame, 5 7/8 x 2 3/8" Dia. Keyed Shaft
  • Cast Iron Frame, Totally Enclosed Fan Cooled (IP56)
  • Service Factor: 1.15, Thermal Overload Protection: None
  • Rigid Base, Reversible, Ball Bearings, Class F Insulation
  • Suitable for Inverter Use per NEMA MG-1 Part 31.4.4.2
  • Inverter Duty Speed Range: 20:1 Variable Torque, 10:1 Constant Torque
  • Motors are U.L. Recognized, CSA Approved and CE Marked
  • 1 Year Manufacture Warranty

Part of the E2-E841 family of motors. For use in Severe Duty Petro-Chemical Applications Having Explosive Gases. Certified for Class 1, Division 2, Groups B,C,D

Specifications
Voltage 460V
Horsepower 40 HP
RPM 900
Phase Three Phase
Frame 365T
Enclosure TEFC
Hertz 60 Hz
Amperage 51.6 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
Duty Severe Duty
!
