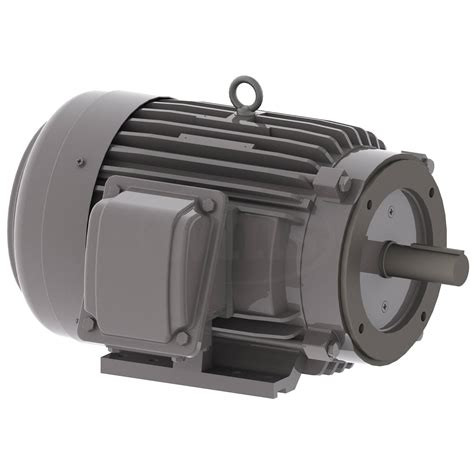

HB0504C TECO-Westinghouse 50 hp 1800 RPM 326TC 460V TEFC Severe Duty Petro-Chem 3-Ph Motor
HB0504C TECO-Westinghouse 50 hp 1800 RPM 326TC 460V TEFC Severe Duty Petro-Chem 3-Ph Motor
HB0504C TECO-Westinghouse 50 hp 1800 RPM 326TC 460V TEFC Severe Duty Petro-Chem 3-Ph Motor
HB0504C TECO-Westinghouse 50 hp 1800 RPM 326TC 460V TEFC Severe Duty Petro-Chem 3-Ph Motor

TECO WESTINGHOUSE

HB0504C TECO-Westinghouse 50 hp 1800 RPM 326TC 460V TEFC Severe Duty Petro-Chem 3-Ph Motor

(No reviews) Write a Review
$5,149.44
SKU HB0504C
Shipping Calculated at Checkout
Voltage 460V
Horsepower 50 HP
RPM 1800
Phase Three Phase
Frame 326TC
Enclosure TEFC
Hertz 60 Hz
Amperage 56.9 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
Duty Severe Duty
Adding to cart… The item has been added
Description

TECO WESTINGHOUSE, NEMA PREMIUM ELECTRIC MOTOR

  • 50 hp 1800 RPM, 56.9 amps 460 Volts 60 Hz. Three Phase
  • NEMA 326TC Frame, 5 x 2 1/8" Dia. Keyed Shaft
  • Cast Iron Frame, Totally Enclosed Fan Cooled (IP56)
  • Service Factor: 1.15, Thermal Overload Protection: None
  • Rigid Base, Reversible, Ball Bearings, Class F Insulation
  • Suitable for Inverter Use per NEMA MG-1 Part 31.4.4.2
  • Inverter Duty Speed Range: 20:1 Variable Torque, 10:1 Constant Torque
  • Motors are U.L. Recognized, CSA Approved and CE Marked
  • 1 Year Manufacture Warranty

Part of the E2-E841 family of motors. For use in Severe Duty Petro-Chemical Applications Having Explosive Gases. Certified for Class 1, Division 2, Groups B,C,D

Specifications
Voltage 460V
Horsepower 50 HP
RPM 1800
Phase Three Phase
Frame 326TC
Enclosure TEFC
Hertz 60 Hz
Amperage 56.9 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
Duty Severe Duty
!
