HBV0152C TECO-Westinghouse 15 hp 3600 RPM 254TC Vertical 460V TEFC Severe Duty Petro-Chem 3-Ph Motor
HBV0152C TECO-Westinghouse 15 hp 3600 RPM 254TC Vertical 460V TEFC Severe Duty Petro-Chem 3-Ph Motor
HBV0152C TECO-Westinghouse 15 hp 3600 RPM 254TC Vertical 460V TEFC Severe Duty Petro-Chem 3-Ph Motor
HBV0152C TECO-Westinghouse 15 hp 3600 RPM 254TC Vertical 460V TEFC Severe Duty Petro-Chem 3-Ph Motor

TECO WESTINGHOUSE

HBV0152C TECO-Westinghouse 15 hp 3600 RPM 254TC Vertical 460V TEFC Severe Duty Petro-Chem 3-Ph Motor

(No reviews) Write a Review
$2,447.90
SKU HBV0152C
Shipping Calculated at Checkout
Voltage 460V
Horsepower 15 HP
RPM 3600
Phase Three Phase
Frame 254TC
Enclosure TEFC
Hertz 60 Hz
Amperage 16.6 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Duty Severe Duty
Adding to cart… The item has been added
Description

TECO WESTINGHOUSE, NEMA PREMIUM ELECTRIC MOTOR

  • 15 hp 3600 RPM, 16.6 amps 460 Volts 60Hz. Three Phase

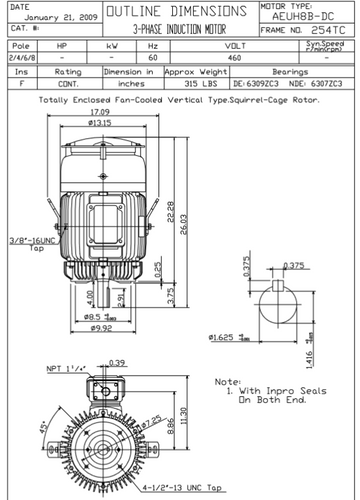

  • NEMA 254TC Frame, 3 3/4 x 1 5/8" Dia. Keyed Shaft
  • Cast Iron Frame, Totally Enclosed Fan Cooled (IP54)
  • Service Factor: 1.15, Thermal Overload Protection: None
  • No Base, Reversible, Ball Bearings, Class F Insulation
  • Suitable for Inverter Use per NEMA MG-1 Part 31.4.4.2
  • Inverter Duty Speed Range: 20:1 Variable Torque, 10:1 Constant Torque
  • Motors are U.L. Recognized, CSA Approved and CE Marked
  • 1 Year Manufacture Warranty

For use in Severe Duty Petro-Chemical Applications Having Explosive Gases. Certified for Class 1, Division 2, Groups B,C,D

Specifications
Voltage 460V
Horsepower 15 HP
RPM 3600
Phase Three Phase
Frame 254TC
Enclosure TEFC
Hertz 60 Hz
Amperage 16.6 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Duty Severe Duty
!
