HD10P3G Nidec 10 hp 1200 RPM 256T Frame (Rigid Base) 575V TEFC 3-Phase Electric Motor
HD10P3G Nidec 10 hp 1200 RPM 256T Frame (Rigid Base) 575V TEFC 3-Phase Electric Motor
HD10P3G Nidec 10 hp 1200 RPM 256T Frame (Rigid Base) 575V TEFC 3-Phase Electric Motor
HD10P3G Nidec 10 hp 1200 RPM 256T Frame (Rigid Base) 575V TEFC 3-Phase Electric Motor

Nidec

HD10P3G Nidec 10 hp 1200 RPM 256T Frame (Rigid Base) 575V TEFC 3-Phase Electric Motor

(No reviews) Write a Review
$1,590.45
$1,420.48
SKU HD10P3G
Shipping Calculated at Checkout
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 575V
Horsepower 10 HP
RPM 1200
Phase Three Phase
Frame 256T
Enclosure TEFC
Hertz 60 Hz
Amperage 10.0 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
Duty Inverter Duty
Adding to cart… The item has been added
Description
  • 10 hp 1200 RPM, 10.0 amps 575 Volts 60 Hz Three Phase Motor

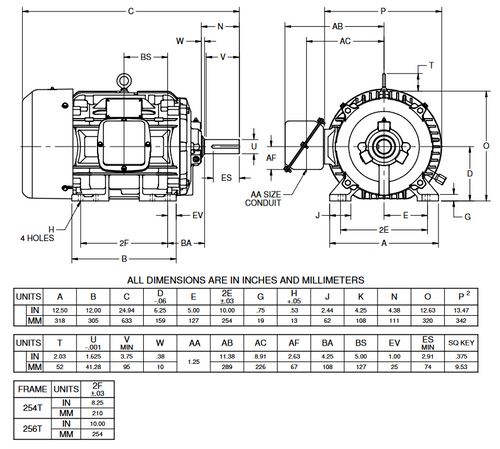

  • NEMA 256T Cast Iron frame Keyed Shaft 1 3/8" Diameter x 3 3/8"
  • Service Factor: 1.15, Overload protection = None
  • Rigid Base Mount, Ball Bearings, Class F Insulation, Reversible
  • 1 Year Manufacture Warranty

Hostile duty motor can be used for many applications requiring a three phase electric motor. Inverter Duty. Self-certified Class 1, Division 2, Groups A, B, C, D. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan cooled. GL24

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 575V
Horsepower 10 HP
RPM 1200
Phase Three Phase
Frame 256T
Enclosure TEFC
Hertz 60 Hz
Amperage 10.0 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
Duty Inverter Duty
!
