HD25V2B Nidec 25 hp 1800 RPM 284T (Rigid Base Cast Iron) 230/460V TEFC Inverter-Duty 3-Phase Motor
HD25V2B Nidec 25 hp 1800 RPM 284T (Rigid Base Cast Iron) 230/460V TEFC Inverter-Duty 3-Phase Motor
HD25V2B Nidec 25 hp 1800 RPM 284T (Rigid Base Cast Iron) 230/460V TEFC Inverter-Duty 3-Phase Motor
HD25V2B Nidec 25 hp 1800 RPM 284T (Rigid Base Cast Iron) 230/460V TEFC Inverter-Duty 3-Phase Motor

Nidec

HD25V2B Nidec 25 hp 1800 RPM 284T (Rigid Base Cast Iron) 230/460V TEFC Inverter-Duty 3-Phase Motor

(No reviews) Write a Review
$2,040.10
$1,821.26
SKU HD25V2B
Shipping Calculated at Checkout
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 230/460V
Horsepower 25 HP
RPM 1800
Phase Three Phase
Enclosure TEFC
Hertz 60 Hz
Amperage 58.0/29.2 Amps
Bearings Ball Bearings
Speeds 1-Speed
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
Adding to cart… The item has been added
Description
  • 25 hp 1800 RPM, 58.0/29.2 amps 230/460 Volts 60 Hz Three Phase Motor

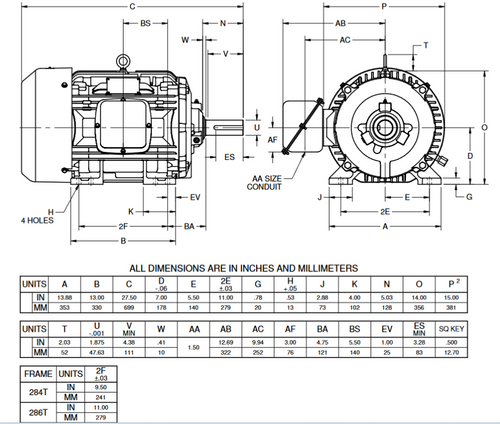

  • NEMA 284T Cast Iron Frame, Keyed Shaft 1 7/8" Diameter x 4 5/8"
  • Service Factor: 1.15 Overload protection = None
  • C-Face Mount, Ball Bearings, Class F Insulation, Reversible
  • 1 Year Manufacture Warranty

Speed controllable C-Face motor for material handling, cranes and machine tools in hostile environments. 5:1 speed range at constant torque, 20:1 at variable torque. NEMA design B. Brake provisions. Wiring diagram on motor name plate. TEFC = Totally-Enclosed Fan-Cooled. GA51

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 230/460V
Horsepower 25 HP
RPM 1800
Phase Three Phase
Enclosure TEFC
Hertz 60 Hz
Amperage 58.0/29.2 Amps
Bearings Ball Bearings
Speeds 1-Speed
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
!
