HD30V1BS Nidec 30 hp 3600 RPM 286TS (Rigid Base Cast Iron) 230/460V TEFC Inverter-Duty 3-Phase Motor
HD30V1BS Nidec 30 hp 3600 RPM 286TS (Rigid Base Cast Iron) 230/460V TEFC Inverter-Duty 3-Phase Motor
HD30V1BS Nidec 30 hp 3600 RPM 286TS (Rigid Base Cast Iron) 230/460V TEFC Inverter-Duty 3-Phase Motor
HD30V1BS Nidec 30 hp 3600 RPM 286TS (Rigid Base Cast Iron) 230/460V TEFC Inverter-Duty 3-Phase Motor

Nidec

HD30V1BS Nidec 30 hp 3600 RPM 286TS (Rigid Base Cast Iron) 230/460V TEFC Inverter-Duty 3-Phase Motor

(No reviews) Write a Review
$2,528.85
$2,258.37
SKU HD30V1BS
Shipping Calculated at Checkout
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 230/460V
Horsepower 30 HP
RPM 3600
Phase Three Phase
Enclosure TEFC
Hertz 60 Hz
Amperage 69.0/35.0 Amps
Bearings Ball Bearings
Speeds 1-Speed
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
Adding to cart… The item has been added
Description
  • 30 hp 3600 RPM, 69.0/35.0 amps 230/460 Volts 60 Hz Three Phase Motor

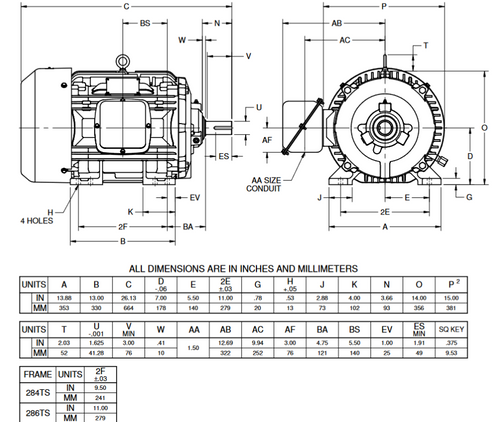

  • NEMA 2846TS Cast Iron Frame, Keyed Shaft 1 5/8" Diameter x 3 1/4"
  • Service Factor: 1.15 Overload protection = None
  • C-Face Mount, Ball Bearings, Class F Insulation, Reversible
  • 1 Year Manufacture Warranty

Speed controllable C-Face motor for material handling, cranes and machine tools in hostile environments. 5:1 speed range at constant torque, 20:1 at variable torque. NEMA design B. Brake provisions. Wiring diagram on motor name plate. TEFC = Totally-Enclosed Fan-Cooled. GA50

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 230/460V
Horsepower 30 HP
RPM 3600
Phase Three Phase
Enclosure TEFC
Hertz 60 Hz
Amperage 69.0/35.0 Amps
Bearings Ball Bearings
Speeds 1-Speed
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
!
