HD5P4E Nidec | 5 hp 900 RPM 254T Frame 230/460V TEFC Nidec Electric Motor

HD5P4E Nidec | 5 hp 900 RPM 254T Frame 230/460V TEFC Nidec Electric Motor

This HD5P4E Nidec electric motor is a premium efficient, totally enclosed fan-cooled (TEFC) motor designed for industrial applications requiring reliable performance and durability. It is suitable for replacing motors in variable and constant torque applications, including mill and chemical duty environments.

Key Specifications

• Horsepower: 5 hp
• RPM: 900
• Voltage: 230/460 V
• Amperage: 15.0/7.5 A
• Enclosure: Totally Enclosed Fan Cooled (TEFC)

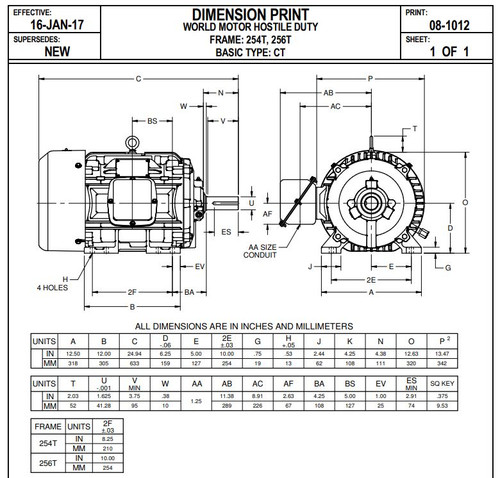

• Frame / Diameter: NEMA 254T Frame, "C" Dimension 24.9"
• Shaft Dimensions: Keyed shaft, 1-5/8" diameter x 4" length
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a rigid base mount with corrosion-resistant cast iron frame and chemical duty paint for hostile environments. It includes a stainless steel nameplate with CE marking, zinc-plated hardware, steel fan cover, conduit box, and condensation drains with plastic plugs. The motor supports continuous duty at 40°C ambient temperature and is suitable for 20:1 variable torque and 5:1 constant torque when used with inverter power. Wiring diagram is provided on the motor nameplate for easy installation.

Warranty

1 Year Manufacturer Warranty
