HD60P1ES Nidec | 60 hp 3600 RPM 364TS Frame 230/460V TEFC Nidec Electric Motor

• 60 hp 3600 RPM, 136.0/69.0 amps 230/460 Volts Three Phase Motor
• NEMA 364TS Frame Keyed Shaft 1 7/8" Diameter x 3 3/4"
• Service Factor: 1.15 - overload protection = None
• Reversible - Rigid Base Mount - Ball Bearings - Class F Insulation

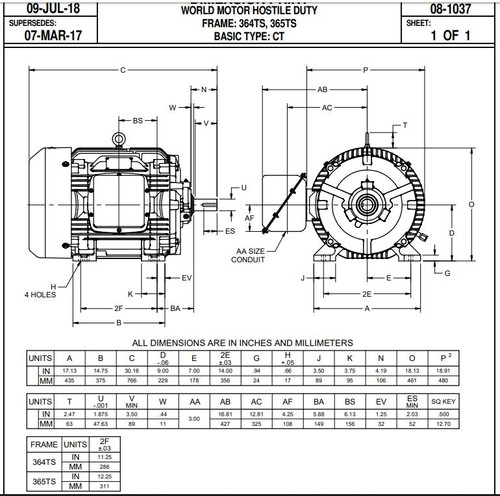

• "C" Dimension = 30.2"
• 1 Year Manufacture Warranty

Hostile duty, premium efficient, world motor, cast iron frame. Corrosion resistant mill & chemical duty paint, stainless steel nameplate (with CE mark) & zinc plated hardware. Steel fan cover & conduit box, condensation drains with plastic plugs. Suitable for 20:1 variable torque; 5:1 constant torque on inverter power. Motor has a rigid base mount with a keyed shaft. Continuous Duty.  40C Ambient Temp. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan cooled.

Model GD01, H60P1ES
